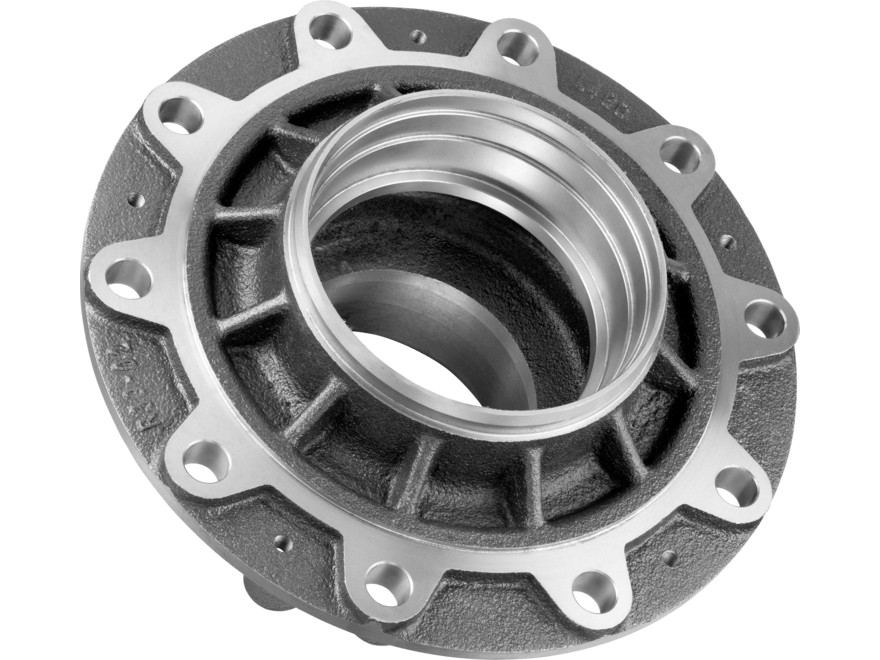

R 39.02, DONGFENG wheel-end component by Rastgar Engineering
EU/Japanese Wheel Hubs

Wheel Hub

R 39.02
Brand DONGFENG
Rastgar No. R 39.02
OEM Number 3104015-K1200
Cross Reference 31XZB-04015
Application DFL-4250 280H
Front / Rear Rear
Material EN-GJS-500-7
ABS Compatible
Request a Quote

Dimension Reference

Front hub dimension reference diagram Rear hub dimension reference diagram
ABS A [mm] B [mm] C [mm] D [mm] E [mm]
✓ 16017022225.5375

Technical Specifications

Outer DiameterPCDNo. of HolesInner BearingOuter BearingAssembly HeightSurface Coating
37533510170160225.5BLACK AIR DRYING

Comparison Numbers

TypeRef. No.
OEM / Cross Ref. 3104015-K1200
Cross Ref. 31XZB-04015

Related Products

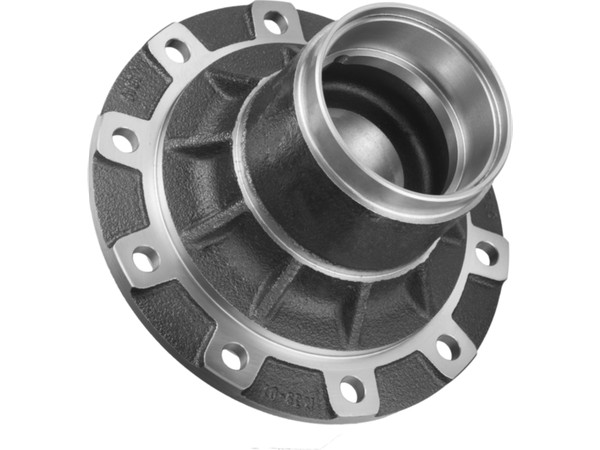

DONGFENG R 39.01, DONGFENG wheel-end component
