EU/Japanese Wheel Hubs

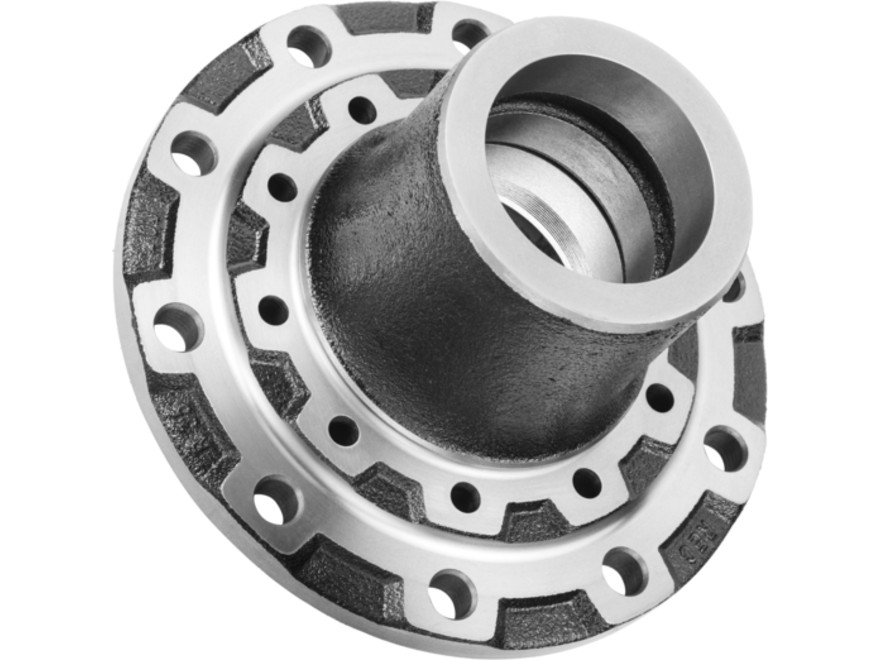

Wheel Hub
R 35.09
| Brand | SCANIA |
|---|---|
| Rastgar No. | R 35.09 |
| OEM Number | 2296959 |
| Cross Reference | 2734954 |
| Application | L-P-G-R-S Series |
| Front / Rear | Front |
| Material | EN-GJS-500-7 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 127 | 127.2 | 24 | 210 | 382 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 382 | 335 | 10 | 127.2 | 127 | 210 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2296959 |
| Cross Ref. | 2734954 |
| Customer Ref. | DESERT FACE INTERNATIONAL FZCO: USC-8950 |
| Product Ref. | B 35.01|Wheel Hub |
| Product Ref. | R 35.09 G00007|Wheel Hub Assembly |
