EU/Japanese Wheel Hubs

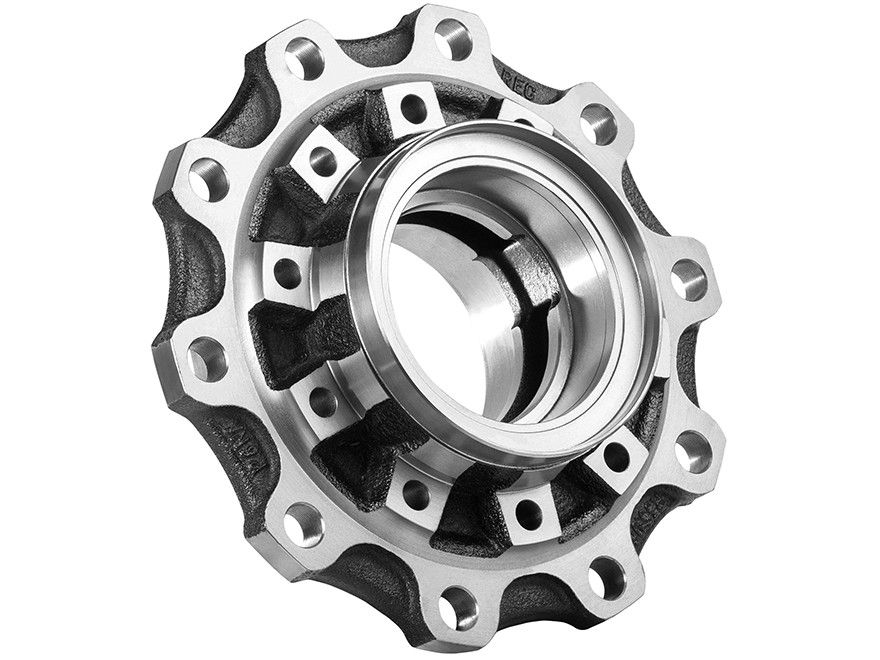

Wheel Hub
R 35.06
| Brand | SCANIA |
|---|---|
| Rastgar No. | R 35.06 |
| OEM Number | 2290525 |
| Cross Reference | 1822615 , 2603319 |
| Application | R & S SERIES 2017, EURO 6 |
| Front / Rear | Rear |
| Material | EN-GJS-600-3 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 148 | 148 | 24 | 149.45 | 374.9 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 374.9 | 335 | 10 | 148 | 148 | 149.45 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2290525 |
| Cross Ref. | 1822615 |
| Cross Ref. | 2603319 |
| Customer Ref. | Bosung Auto Part: R 35.06 |
| Customer Ref. | Universal Components U.K Limited: SCHB0020 |
| Product Ref. | R 35.06 900007|Wheel Hub Assembly |
