EU/Japanese Wheel Hubs

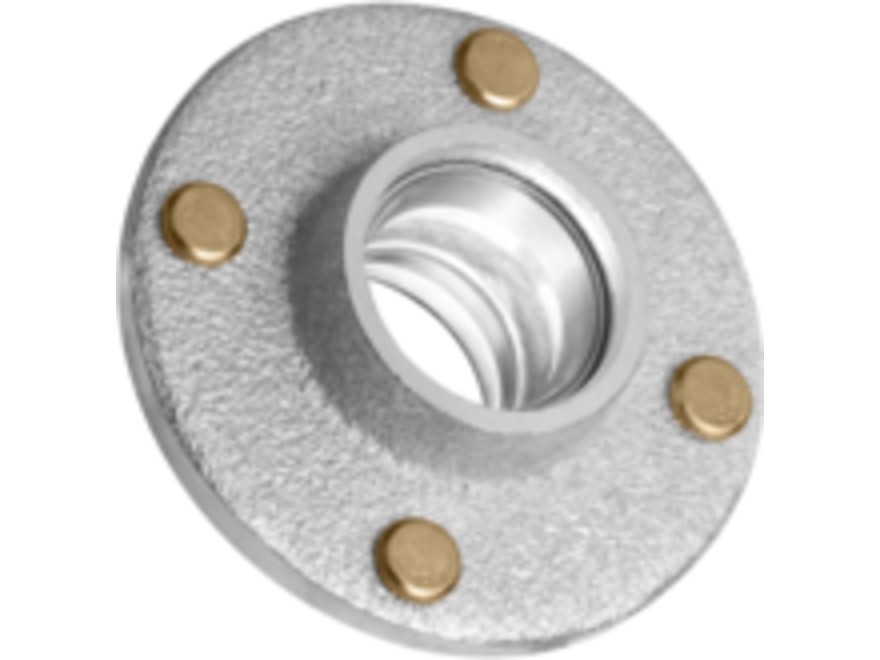

Wheel Hub
R 34.02
| Brand | UTILITY TRAILER HUBS |
|---|---|
| Rastgar No. | R 34.02 |
| OEM Number | A3-8810 |
| Application | N/A |
| Front / Rear | Other |
| Material | EN-GJS-400-15 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 50.266 | 50.266 | 9.9 | 63 | 126 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 126 | 101.6 | 4 | 50.266 | 50.266 | 63 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | A3-8810 |
| Customer Ref. | Peak Dynamics Ltd: TR-505 |
| Product Ref. | W 34.01 |
| Product Ref. | J 34.01 |
