American Wheel Hubs

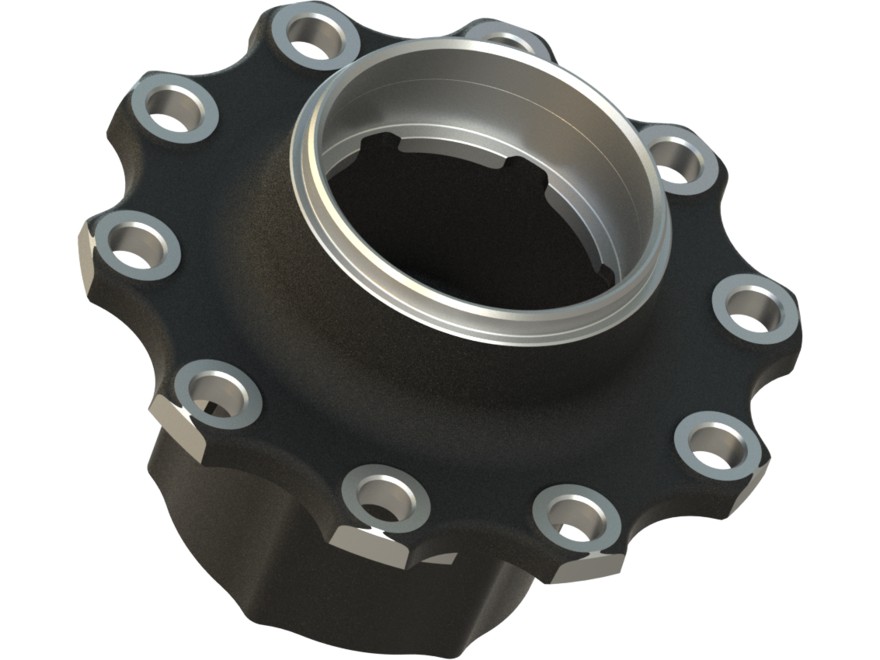

Wheel Hub
R 24.17
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.17 |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 152.4 | 152.4 | 24.6 | 223 | 329 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 329 | 285.75 | 10 | 152.4 | 152.4 | P | 223 | Black Powder Coated | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | R 24.17 |
| Customer Ref. | Fersa Bearings S.A.: F 400066/ 4131303111000 |
