American Wheel Hubs

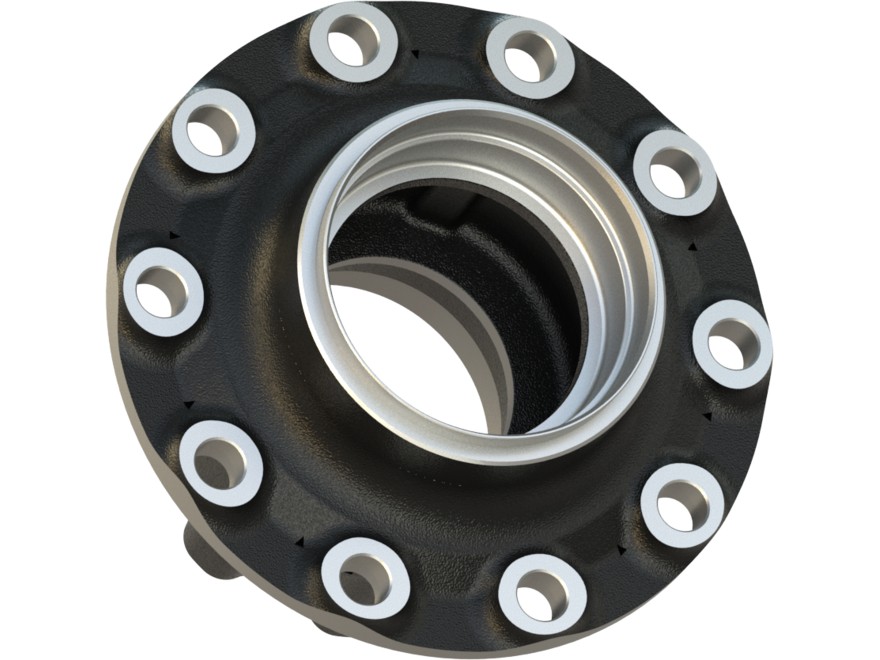

Wheel Hub
R 24.13
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.13 |
| Cross Reference | 10082222 , 150.D1102 |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 139.92 | 152.3 | 24.6 | 232 | 327 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 327 | 285.75 | 10 | 152.3 | 139.92 | R | 232 | BLACK AIR DRYING | Drive Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2653 |
| Cross Ref. | AUTOMANN : 150.D1102 |
| Cross Ref. | WEBB : 2653 |
| Cross Ref. | CONMET : 10082222 |
| Customer Ref. | La Rue Enterprises: 265313T |
| Customer Ref. | Rocklea Truck Spare: R 24.13 |
| Product Ref. | R 24.13 100117|Wheel Hub Assembly |
