American Wheel Hubs

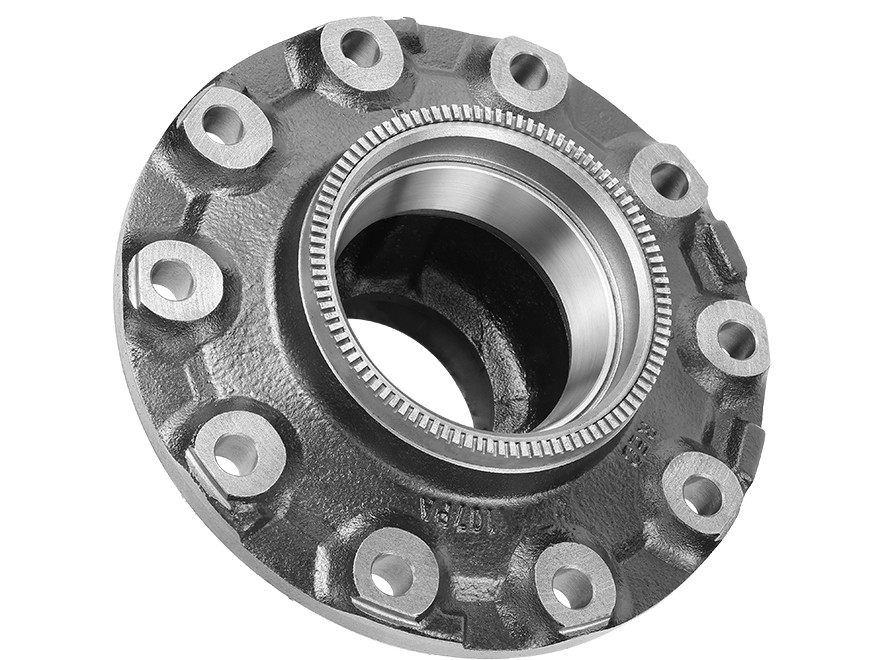

Wheel Hub
R 24.11
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.11 |
| Cross Reference | 150.T1107 , HT518K |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 122.2 | 147 | 20 | 179.32 | 327 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 327 | 285.75 | 10 | 147 | 122.2 | N | 179.32 | BLACK AIR DRYING | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1020 |
| Cross Ref. | GUNITE : HT518K |
| Cross Ref. | WEBB : 1020 |
| Cross Ref. | AUTOMANN : 150.T1107 |
| Customer Ref. | La Rue Enterprises: 67849 |
| Customer Ref. | PDC-USA |
| Customer Ref. | Fleet Pride Dressed Axle Grapevine: 5107 PA-bulk |
| Customer Ref. | Rocklea Truck Spare: R 24.11 |
| Product Ref. | B 44.01|Wheel Hub |
| Product Ref. | B 44.02|Wheel Hub |
| Product Ref. | R 24.11 100107|Wheel Hub Assembly |
