American Wheel Hubs

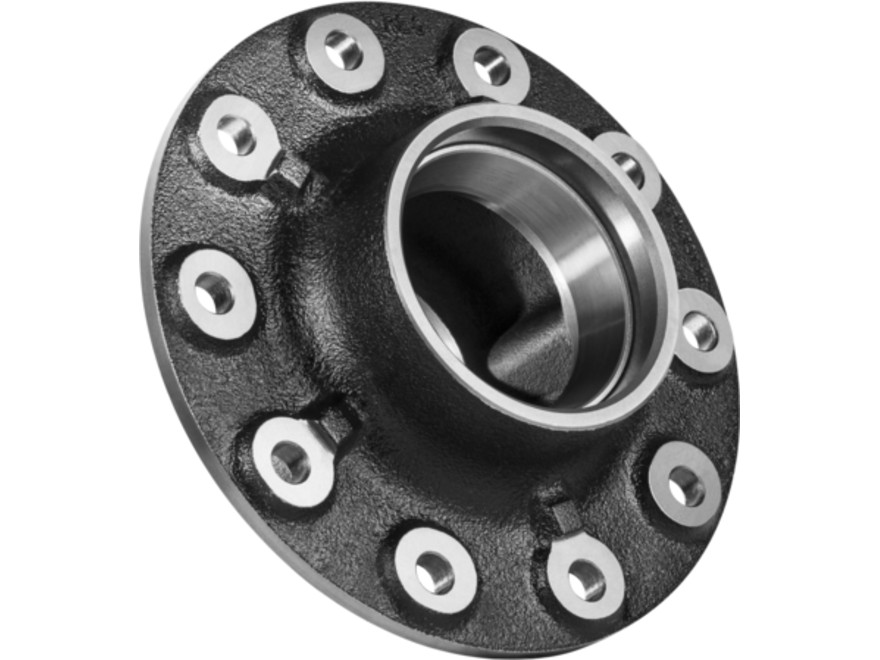

Wheel Hub
R 24.10
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.10 |
| Cross Reference | 04-14059 , 150.T1105 , 22044 , H389K |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 122.25 | 147 | 20 | 179.3 | 340 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 340 | 285.75 | 10 | 147 | 122.25 | N | 179.3 | BLACK AIR DRYING | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1001 |
| Cross Ref. | WEBB : 1001 |
| Cross Ref. | DANA : 22044 |
| Cross Ref. | DAYTON : 04-14059 |
| Cross Ref. | GUNITE : H389K |
| Cross Ref. | AUTOMANN : 150.T1105 |
| Customer Ref. | La Rue Enterprises: 65984 |
| Customer Ref. | PDC-USA |
| Customer Ref. | Fleet Pride Dressed Axle Grapevine: 2360 PN-bulk |
| Product Ref. | B 44.01|Wheel Hub |
| Product Ref. | B 44.02|Wheel Hub |
| Product Ref. | R 24.10 100007|Wheel Hub Assembly |
