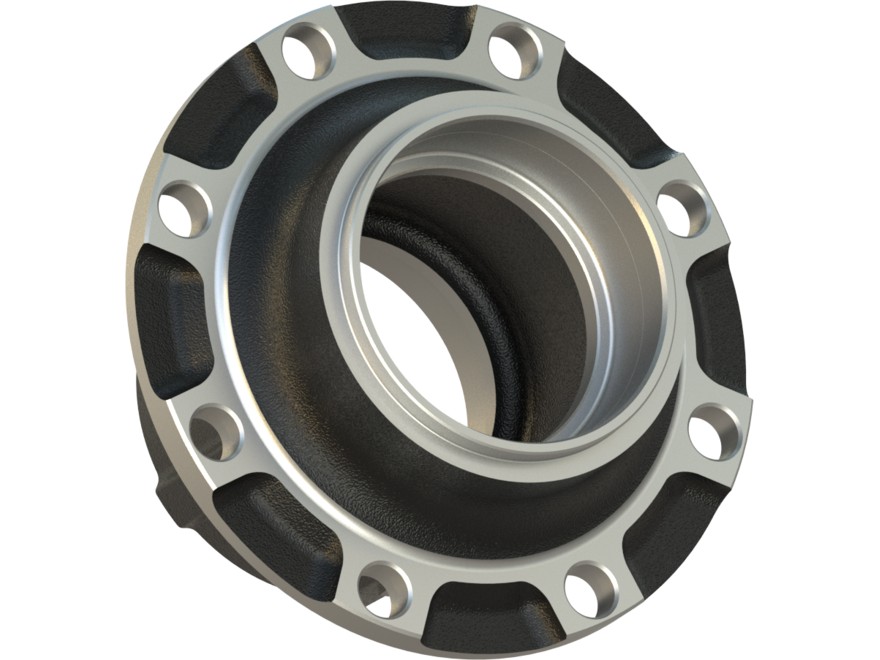

R 24.04, WEBB wheel-end component by Rastgar Engineering
American Wheel Hubs

Wheel Hub

R 24.04
Brand WEBB
Rastgar No. R 24.04
Cross Reference HT 875
Application N/A
Front / Rear Rear
Material EN-GJS-400-15
ABS Compatible
Request a Quote

Dimension Reference

Front hub dimension reference diagram Rear hub dimension reference diagram
ABS A [mm] B [mm] C [mm] D [mm] E [mm]
✓ 152.4152.424.6203308.5

Technical Specifications

Outer DiameterPCDNo. of HolesInner BearingOuter BearingSpindle TypeAssembly HeightSurface CoatingKit Description
308.52758152.4152.4P203BLACK AIR DRYINGTrailer Application

Comparison Numbers

TypeRef. No.
OEM / Cross Ref. 2347
Cross Ref. WEBB : 2347
Cross Ref. GUNITE : HT 875
Customer Ref. La Rue Enterprises: HT875
Product Ref. R 24.04 100117|Wheel Hub Assembly
