American Wheel Hubs

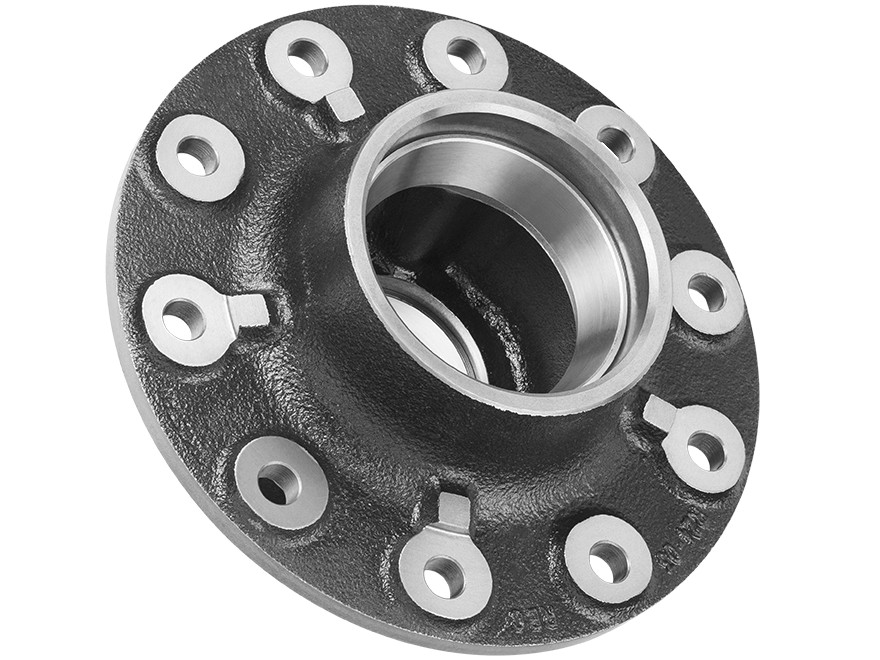

Wheel Hub
R 24.03
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.03 |
| Cross Reference | 150.T1301 , HT807K |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 122.25 | 146.05 | 20 | 190.64 | 340 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 340 | 285.75 | 10 | 146.05 | 122.25 | Other | 190.64 | BLACK AIR DRYING | Drive Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1221 |
| Cross Ref. | AUTOMANN : 150.T1301 |
| Cross Ref. | WEBB : 1221 |
| Cross Ref. | GUNITE : HT807K |
| Customer Ref. | La Rue Enterprises: 64159 |
| Customer Ref. | PDC-USA |
| Customer Ref. | Fleet Pride Dressed Axle Grapevine: 2359 PN-bulk |
| Customer Ref. | Rocklea Truck Spare: R 24.03 |
| Product Ref. | B 44.02|Wheel Hub |
| Product Ref. | R 24.03 100007|Wheel Hub Assembly |
