American Wheel Hubs

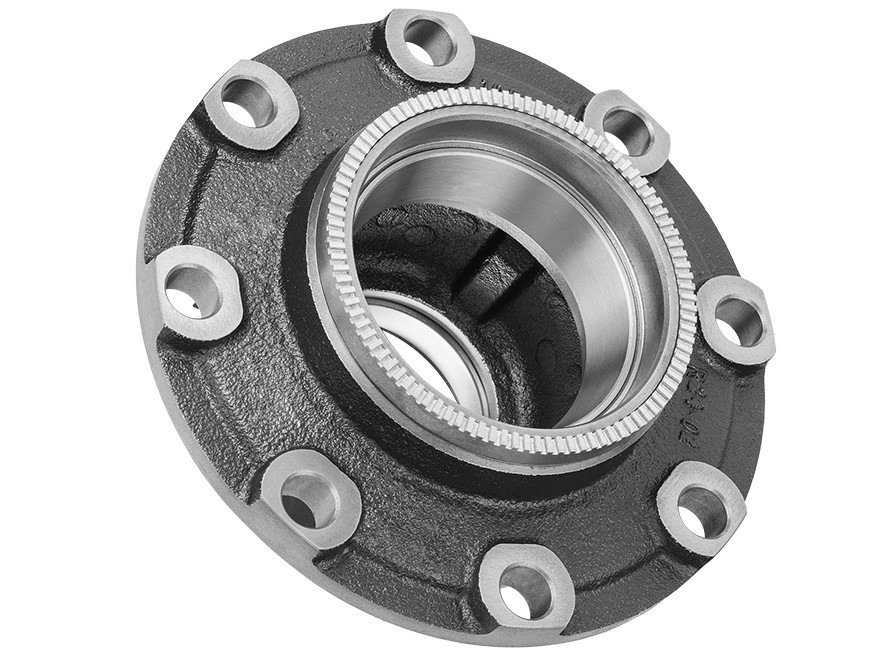

Wheel Hub
R 24.02
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.02 |
| Cross Reference | 00133 , 10-00048 , 105761 , 150.T1102 , HT 796K |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 122.25 | 146.975 | 24.6 | 179.3 | 308.5 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 308.5 | 275 | 8 | 146.975 | 122.25 | N | 179.3 | BLACK AIR DRYING | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2027 |
| Cross Ref. | CONMET : 105761 |
| Cross Ref. | WALTHER : 10-00048 |
| Cross Ref. | GUNITE : HT 796K |
| Cross Ref. | KIC : 00133 |
| Cross Ref. | AUTOMANN : 150.T1102 |
| Cross Ref. | WEBB : 2027 |
| Customer Ref. | La Rue Enterprises: 66003 |
| Customer Ref. | PDC-USA |
| Customer Ref. | Fleet Pride Dressed Axle Grapevine: 1052 PA-bulk |
| Product Ref. | B 44.01|Wheel Hub |
| Product Ref. | B 44.02|Wheel Hub |
| Product Ref. | R 24.02 100117|Wheel Hub Assembly |
