EU/Japanese Wheel Hubs

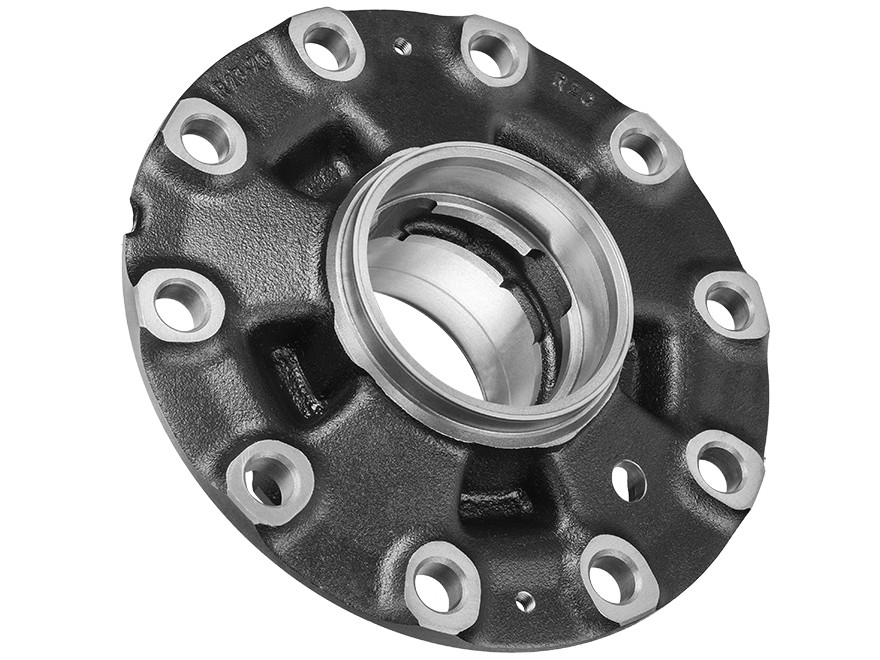

Wheel Hub
R 23.20
| Brand | VOLVO |
|---|---|
| Rastgar No. | R 23.20 |
| OEM Number | 20517952 |
| Cross Reference | 20517950 , 3943982 , 8156332 , 8157682 , 85104299 |
| Application | Volvo F/FL 6 (-2000) F/FL/FM 7 FLC Volvo F/FL/N/NL 10/12/16 Volvo FH/FM/FMX/NH 9/10/11/12/13/16 Volvo FL 6 (2000-) FL FE |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 148 | 148 | 27 | 172.5 | 384 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 384 | 335 | 10 | 148 | 148 | 172.5 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 20517952 |
| Cross Ref. | 20517950 |
| Cross Ref. | 85104299 |
| Cross Ref. | 8156332 |
| Cross Ref. | 3943982 |
| Cross Ref. | 8157682 |
| Customer Ref. | DESERT FACE INTERNATIONAL FZCO: UVC-4958 |
| Product Ref. | R 23.20 900107|Wheel Hub |
| Product Ref. | R 23.20 900107|Wheel Hub Assembly |
