EU/Japanese Wheel Hubs
Wheel Hub

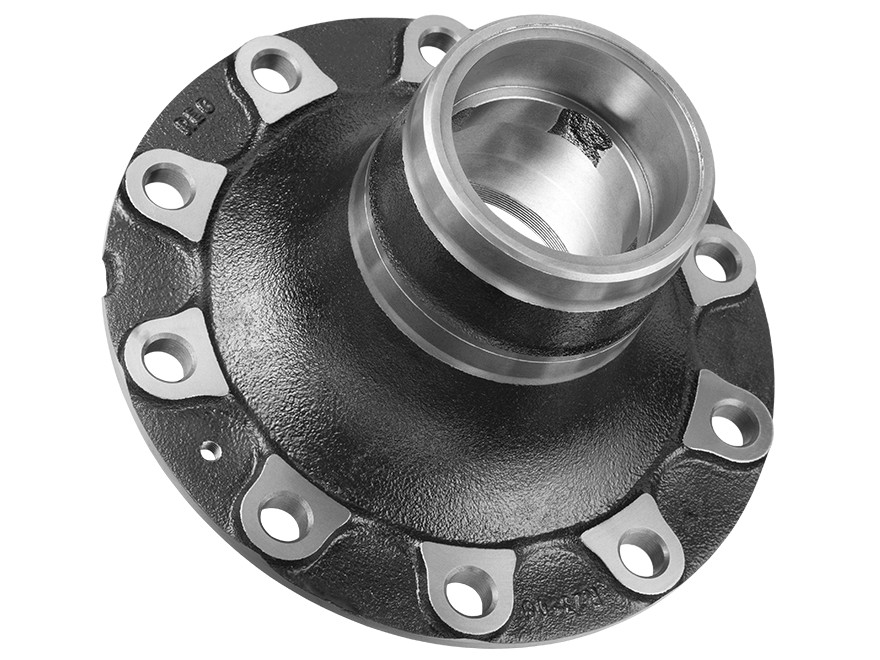

R 23.08
| Brand | VOLVO |
|---|---|
| Rastgar No. | R 23.08 |
| OEM Number | 21024160 |
| Cross Reference | 20534904 , 20534905 , 20535904 , 20581399 , 21024164 , 21024166 |
| Application | FH12,FH16,FM12,FM9,FL6 (DRUM) |
| Front / Rear | Front |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 125 | 125 | 25 | 221 | 384 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 384 | 335 | 10 | 125 | 125 | 221 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 21024160 |
| Cross Ref. | 20534904 |
| Cross Ref. | 20535904 |
| Cross Ref. | 21024166 |
| Cross Ref. | 20534905 |
| Cross Ref. | 21024164 |
| Cross Ref. | 20581399 |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: BH2705 |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: AH2010 |
| Customer Ref. | DESERT FACE INTERNATIONAL FZCO: UVC-6992 |
| Customer Ref. | Fersa Bearings S.A.: 41310039101000 |
| Customer Ref. | Fersa Bearings S.A.: F 400013 |
| Customer Ref. | Stud Extract Limited: AH2705F |
| Customer Ref. | Universal Components U.K Limited: VLHB0004 |
| Product Ref. | R 23.08 900107|Wheel Hub Assembly |
| Product Ref. | R 23.08 900107|Wheel Hub |
