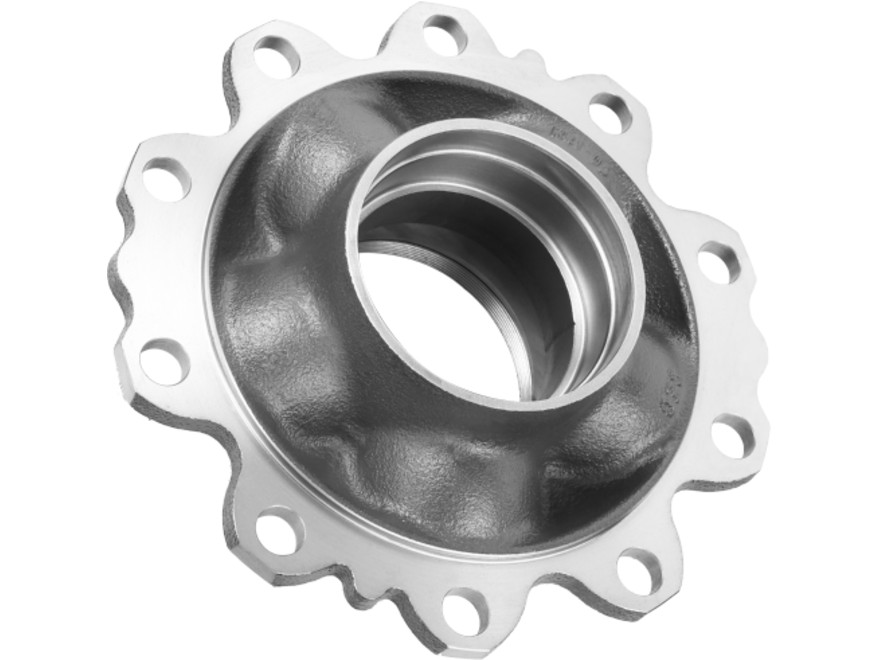

R 21.05, SMB wheel-end component by Rastgar Engineering
EU/Japanese Wheel Hubs

Wheel Hub

R 21.05
Brand SMB
Rastgar No. R 21.05
OEM Number M069034
Cross Reference CF103694 , CF105310
Application N/A
Front / Rear Rear
Material EN-GJS-500-7
Request a Quote

Dimension Reference

Front hub dimension reference diagram Rear hub dimension reference diagram
ABS A [mm] B [mm] C [mm] D [mm] E [mm]
✗ 14714725.5154.5375.5

Technical Specifications

Outer DiameterPCDNo. of HolesInner BearingOuter BearingAssembly HeightSurface Coating
375.533510147147154.5RED OXIDE

Comparison Numbers

TypeRef. No.
OEM / Cross Ref. M069034
Cross Ref. CF105310
Cross Ref. CF103694
