EU/Japanese Wheel Hubs

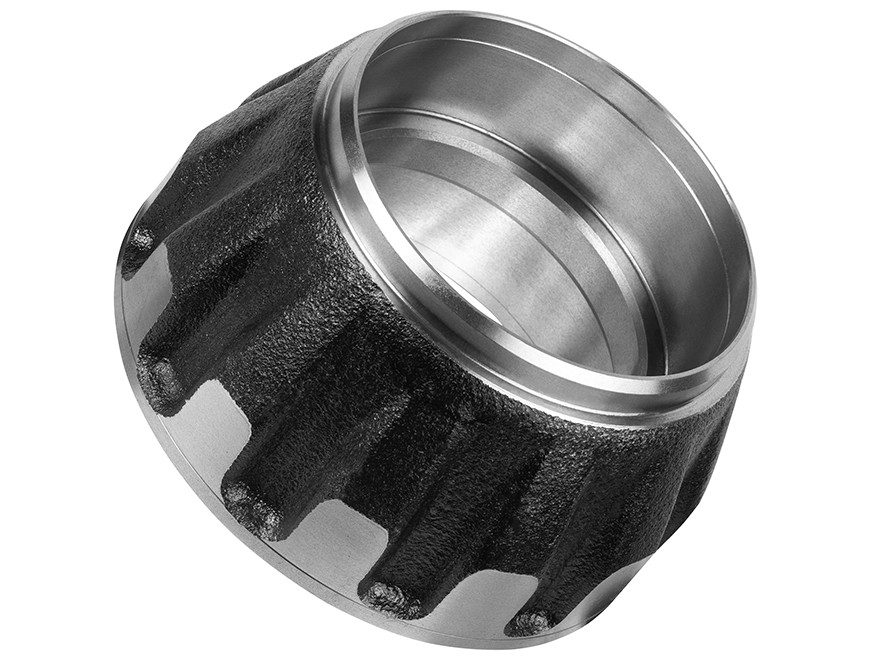

Wheel Hub
R 20.04
| Brand | SAF |
|---|---|
| Rastgar No. | R 20.04 |
| OEM Number | 3434365000 |
| Cross Reference | 04200200100 , 04200200101 , 3200200151 |
| Application | SAF Intradisc SKRB9019, 9022 - 10 Stud |
| Front / Rear | Rear |
| Material | EN-GJS-600-3 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 138 | 138 | M18x1.5 | 108 | 196 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 196 | 168 | 12 | 138 | 138 | 108 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 3434365000 |
| Cross Ref. | 04200200100 |
| Cross Ref. | 04200200101 |
| Cross Ref. | 3200200151 |
| Customer Ref. | Fersa Bearings S.A.: F300001 |
| Customer Ref. | Universal Components U.K Limited: KLTH0098 |
