EU/Japanese Wheel Hubs

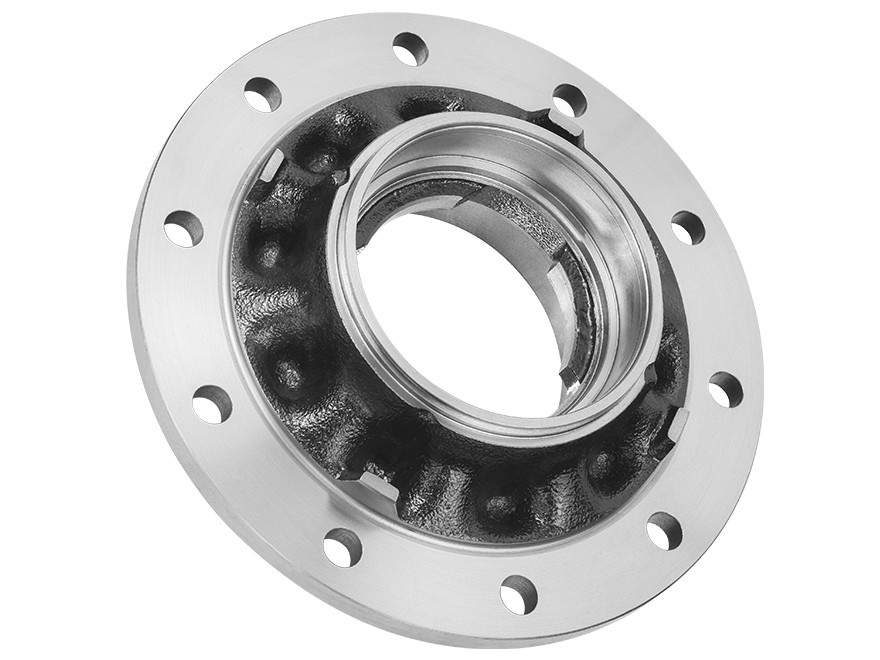

Wheel Hub
R 20.02
| Brand | SAF |
|---|---|
| Rastgar No. | R 20.02 |
| OEM Number | 3307300600 |
| Cross Reference | 1307104213 , 1307300611 , 1307300614 , 1307970822 , 3307300300 , 3307301201 |
| Application | SAF SKRS 9042 & 11242 axle (420x180 & 420x200) - 10 Stud |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 175 | 175 | 22.05 | 124 | 384 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 384 | 335 | 10 | 175 | 175 | 124 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 3307300600 |
| Cross Ref. | 1307300611 |
| Cross Ref. | 1307970822 |
| Cross Ref. | 3307300300 |
| Cross Ref. | 3307301201 |
| Cross Ref. | 1307104213 |
| Cross Ref. | 1307300614 |
| Customer Ref. | BERGKRAFT Automotive GmbH.: BK6101914 |
| Customer Ref. | Rocklea Truck Spare: R 20.02 |
| Customer Ref. | Universal Components U.K Limited: A5731 |
