EU/Japanese Wheel Hubs

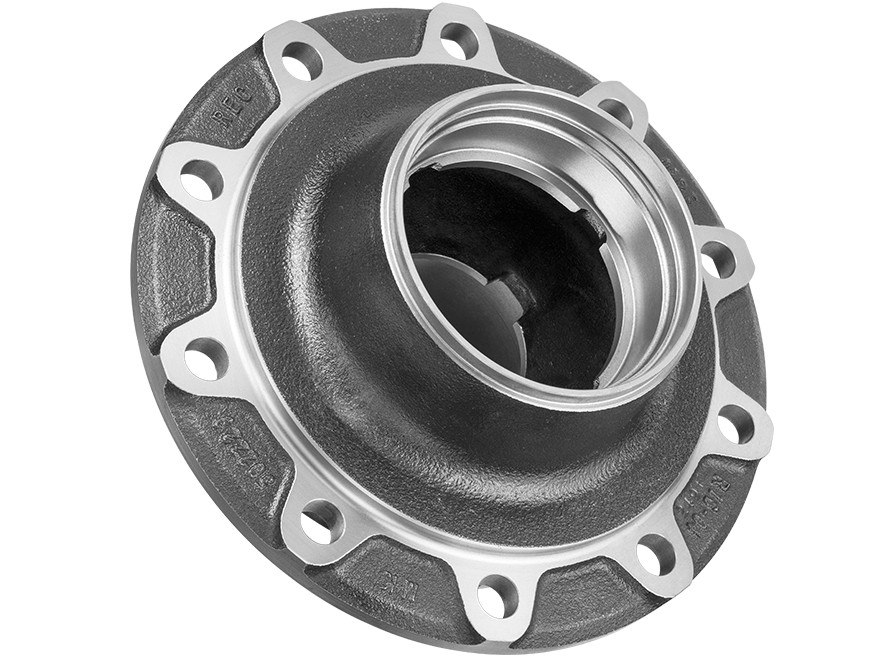

Wheel Hub
R 16.04
| Brand | MITSUBISHI |
|---|---|
| Rastgar No. | R 16.04 |
| OEM Number | MK-502229 |
| Application | Prime Mover/ FV517PM |
| Front / Rear | Rear |
| Material | FCD-600 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 150 | 160 | 24 | 232 | 384 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 384 | 335 | 10 | 160 | 150 | 232 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | MK-502229 |
| Customer Ref. | Master Motor Corporation: MK-502229 |
