EU/Japanese Wheel Hubs

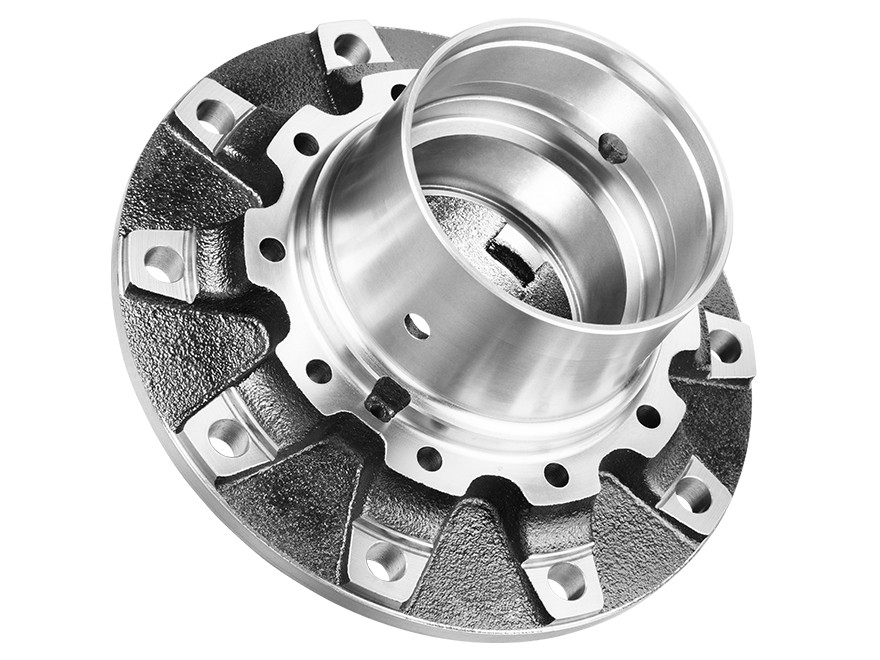

Wheel Hub
R 15.15
| Brand | MERCEDES |
|---|---|
| Rastgar No. | R 15.15 |
| OEM Number | 9583560501 |
| Application | AROCS |
| Front / Rear | Rear |
| Material | EN-GJS-600-3 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 130 | 150 | 22 | 304.4 | 379.8 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 379.8 | 335 | 10 | 150 | 130 | 304.4 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 9583560501 |
| Product Ref. | R 15.15 200007|Wheel Hub Assembly |
