EU/Japanese Wheel Hubs

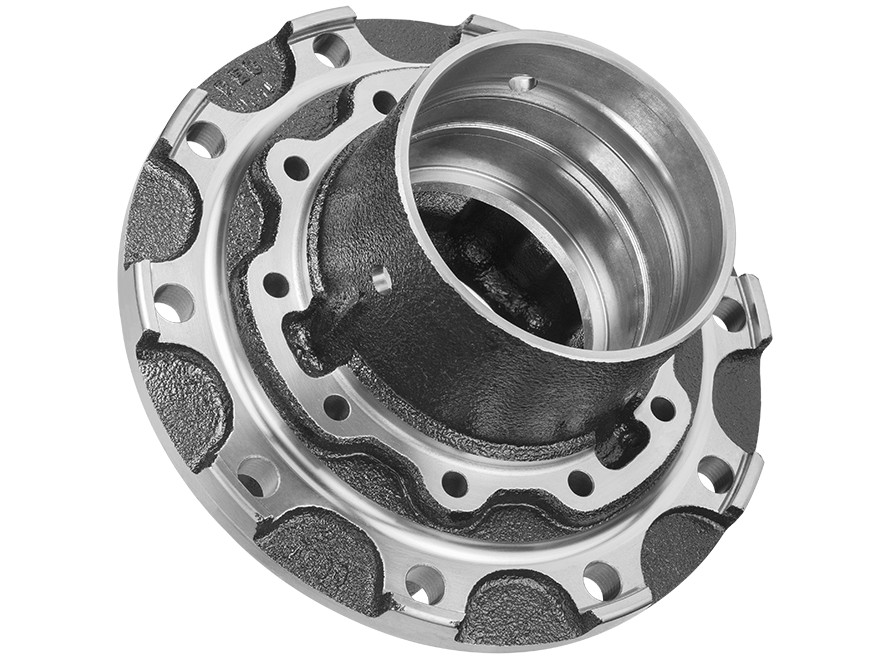

Wheel Hub
R 15.12
| Brand | MERCEDES |
|---|---|
| Rastgar No. | R 15.12 |
| OEM Number | 9603561801 |
| Cross Reference | 9463560201 , 9463560901 , 9463561901 |
| Application | TEGO /AXOR / ACTROS /ANTOS / ARCOS / INTOURO |
| Front / Rear | Rear |
| Material | EN-GJS-600-3 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 157 | 170 | 22 | 298 | 379.6 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 379.6 | 335 | 10 | 170 | 157 | 298 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 9603561801 |
| Cross Ref. | 9463560901 |
| Cross Ref. | 9463560201 |
| Cross Ref. | 9463561901 |
| Customer Ref. | DESERT FACE INTERNATIONAL FZCO: UMC-6937 |
| Customer Ref. | Fersa Bearings S.A.: F 400069/ 41310338101000 |
| Product Ref. | R 15.12 200007|Wheel Hub |
| Product Ref. | Assembly |
