EU/Japanese Wheel Hubs

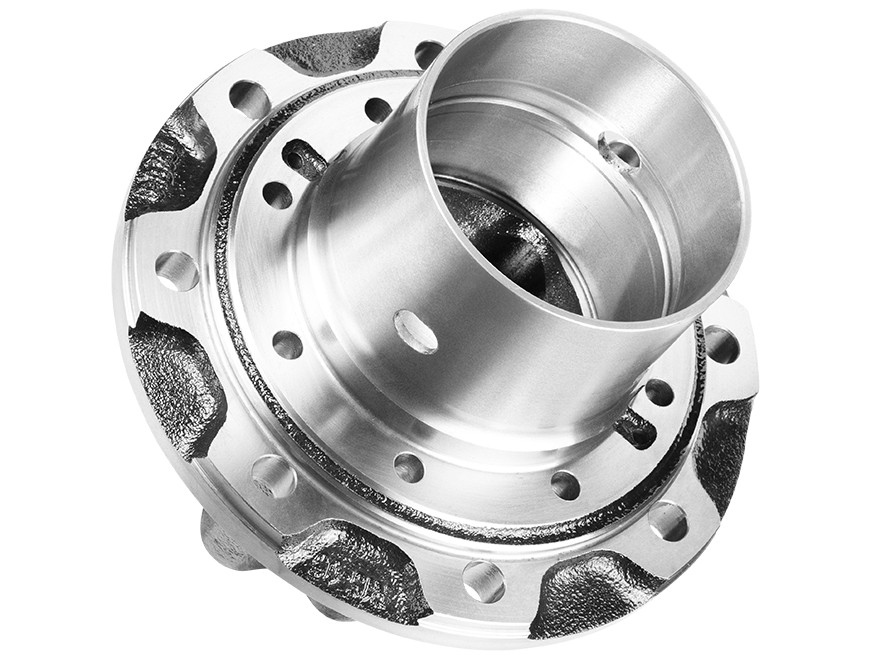

Wheel Hub
R 15.05
| Brand | MERCEDES |
|---|---|
| Rastgar No. | R 15.05 |
| OEM Number | 9763561101 |
| Cross Reference | 9754230112 , 9763560701 , 9763561801 |
| Application | ATEGO / AXOR / ACTROS / ANTOS /ARCOS / TOURO |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 130 | 150 | 20 | 289.9 | 319.6 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 319.6 | 275 | 8 | 150 | 130 | 289.9 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 9763561101 |
| Cross Ref. | 9754230112 |
| Cross Ref. | 9763560701 |
| Cross Ref. | 9763561801 |
| Customer Ref. | Universal Components U.K Limited: MRHB0032 (Bare Hub) |
| Customer Ref. | Universal Components U.K Limited: MRHB0034 (Assembly) |
| Product Ref. | R 15.05 200007|Wheel Hub Assembly |
