EU/Japanese Wheel Hubs

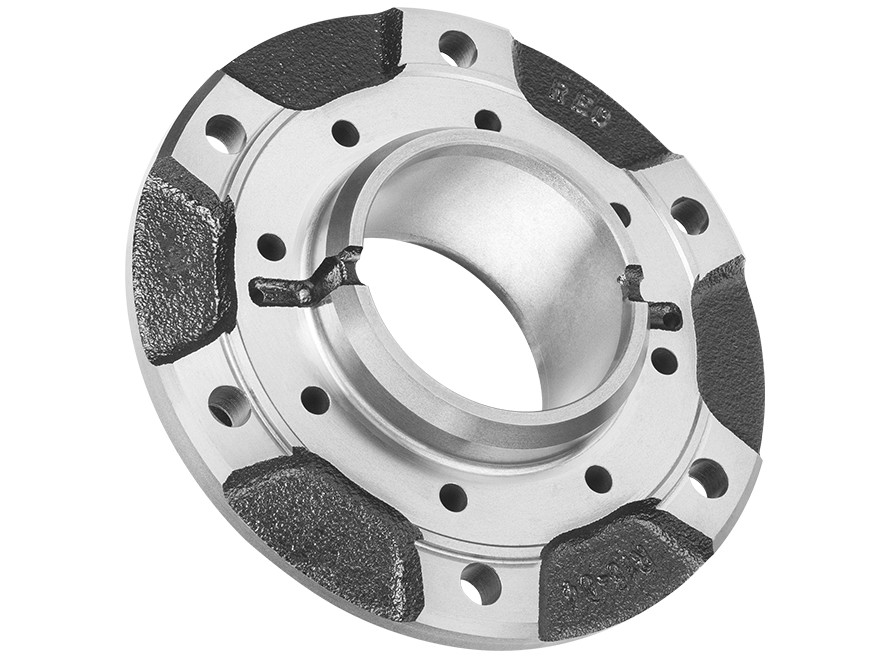

Wheel Hub
R 15.04
| Brand | MERCEDES |
|---|---|
| Rastgar No. | R 15.04 |
| OEM Number | 9703500335 |
| Cross Reference | 9703560301 |
| Application | ATEGO |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | UNITISED Bearing 130 | UNITISED Bearing 130 | 18 | 102 | 286 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 286 | 245 | 6 | UNITISED Bearing 130 | UNITISED Bearing 130 | 102 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 9703500335 |
| Cross Ref. | 9703560301 |
| Customer Ref. | Fersa Bearings S.A.: 41310169101000 |
| Customer Ref. | Fersa Bearings S.A.: F 400034 |
| Customer Ref. | Universal Components U.K Limited: MRHB0019 |
| Product Ref. | R 15.04 D00007|Wheel Hub Assembly |
