EU/Japanese Wheel Hubs

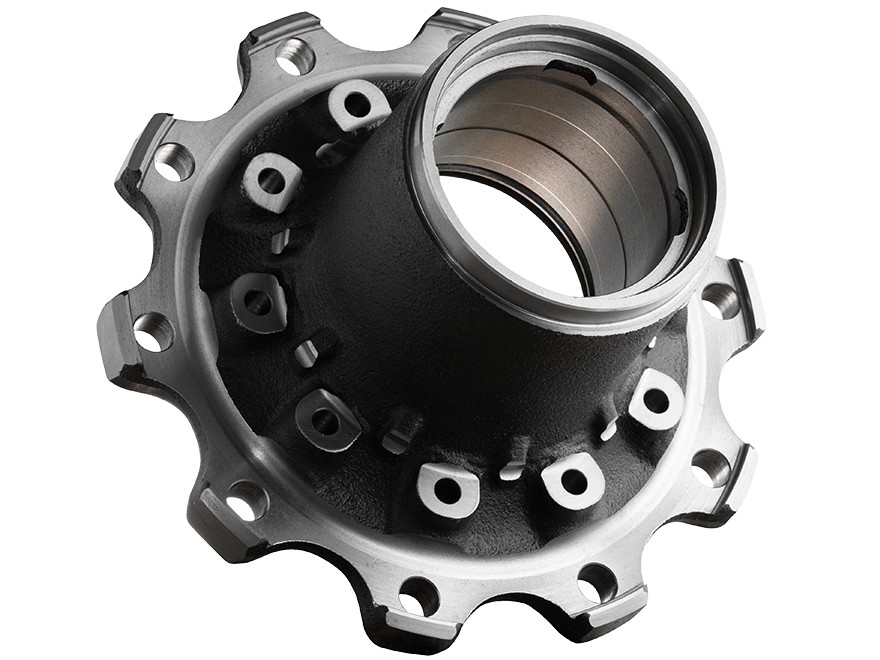

Wheel Hub
R 15.01
| Brand | MERCEDES |
|---|---|
| Rastgar No. | R 15.01 |
| OEM Number | A0003500535 |
| Cross Reference | 9463500535 , 9463560401 , 9463560501 |
| Application | TE4 / TE5 / TL4 / TL5 |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | UNITISED BEARING 140 | UNITISED BEARING 140 | 22 | 212.5 | 380 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 380 | 335 | 10 | UNITISED BEARING 140 | UNITISED BEARING 140 | 212.5 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | A0003500535 |
| Cross Ref. | 9463560501 |
| Cross Ref. | 9463500535 |
| Cross Ref. | 9463560401 |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: AH0150 |
| Customer Ref. | Complete Hub Technologies: R 15.01 |
| Customer Ref. | Fersa Bearings S.A.: F300009 |
| Customer Ref. | Universal Components U.K Limited: AP-990 |
| Product Ref. | R 15.01 G00007|Wheel Hub Assembly |
