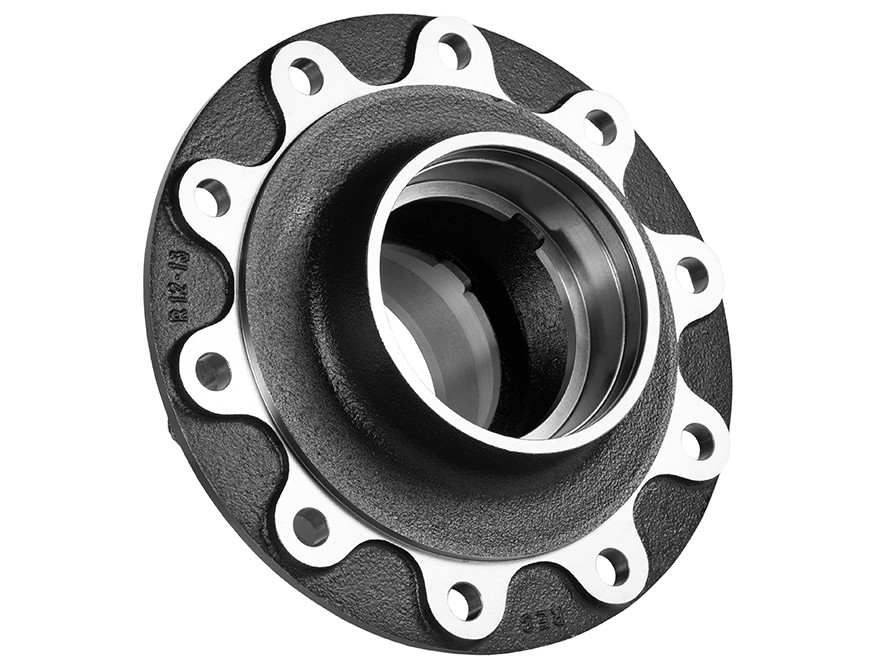

R 12.13, ISUZU wheel-end component by Rastgar Engineering
EU/Japanese Wheel Hubs

Wheel Hub

R 12.13
Brand ISUZU
Rastgar No. R 12.13
Application FVR
Front / Rear Rear
Material EN-GJS-500-7
Request a Quote

Dimension Reference

Front hub dimension reference diagram Rear hub dimension reference diagram
ABS A [mm] B [mm] C [mm] D [mm] E [mm]
✗ 16017022237.5385.6

Technical Specifications

Outer DiameterPCDNo. of HolesInner BearingOuter BearingAssembly HeightSurface Coating
385.633510170160237.5BLACK AIR DRYING

Comparison Numbers

TypeRef. No.
OEM / Cross Ref. R 12.13
