EU/Japanese Wheel Hubs

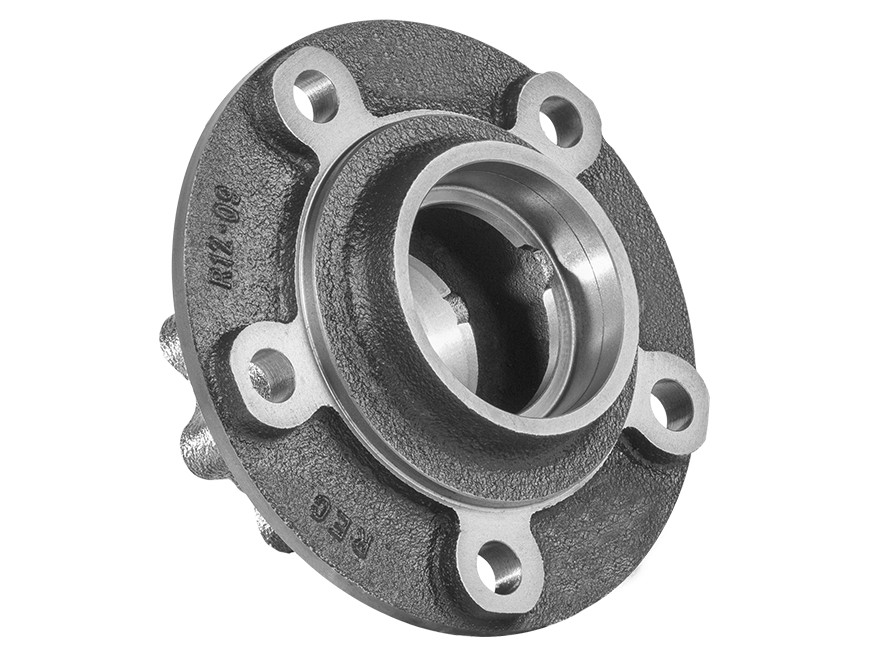

Wheel Hub
R 12.09
| Brand | ISUZU |
|---|---|
| Rastgar No. | R 12.09 |
| OEM Number | 8970261393 |
| Application | NKR |
| Front / Rear | Rear |
| Material | FCD-450 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 92.07 | 101.6 | 21 | 143.5 | 246 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 246 | 203.2 | 5 | 101.6 | 92.07 | 143.5 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 8970261393 |
| Customer Ref. | El WALAA & EL HAMD CO.: R 12.09 |
| Customer Ref. | Ghandhara Industries Limited: 8970261393 |
| Customer Ref. | Rocklea Truck Spare: R 12.09 |
