EU/Japanese Wheel Hubs

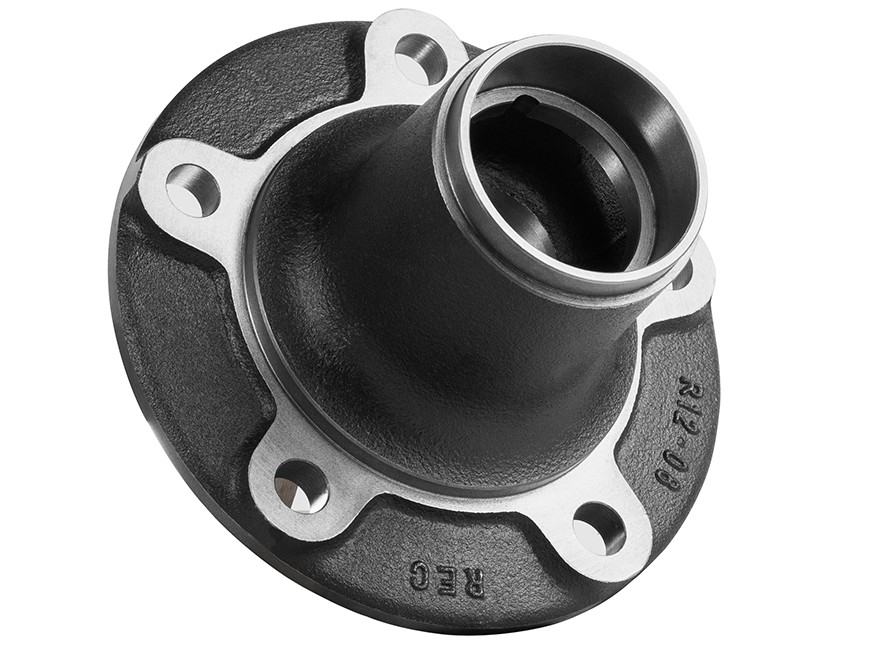

Wheel Hub
R 12.08
| Brand | ISUZU |
|---|---|
| Rastgar No. | R 12.08 |
| OEM Number | 8943654590 |
| Application | NKR |
| Front / Rear | Front |
| Material | FCD-450 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 72 | 90 | 21 | 153 | 246 |
Technical Specifications
| Outer Diameter | Length | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|---|
| 246 | 246 | 203.2 | 5 | 90 | 72 | 153 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 8943654590 |
| Customer Ref. | El WALAA & EL HAMD CO.: R 12.08 |
| Customer Ref. | Ghandhara Industries Limited: 8943654590 |
