EU/Japanese Wheel Hubs
Wheel Hub

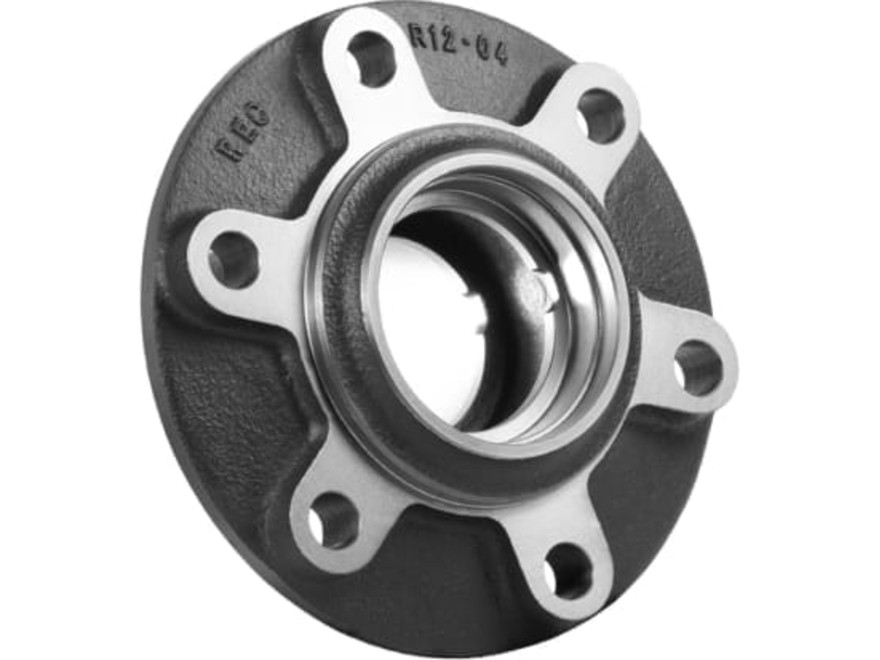

R 12.04
| Brand | ISUZU |
|---|---|
| Rastgar No. | R 12.04 |
| OEM Number | 8970813232 |
| Application | NPR 66 |
| Front / Rear | Rear |
| Material | FCD-450 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 97.63 | 107.95 | 23 | 145 | 271 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 271 | 222.25 | 6 | 107.95 | 97.63 | 145 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 8970813232 |
| Customer Ref. | El WALAA & EL HAMD CO.: R 12.04 |
| Customer Ref. | Ghandhara Industries Limited: 8970813232 |
| Customer Ref. | Rocklea Truck Spare: R 12.04 |
