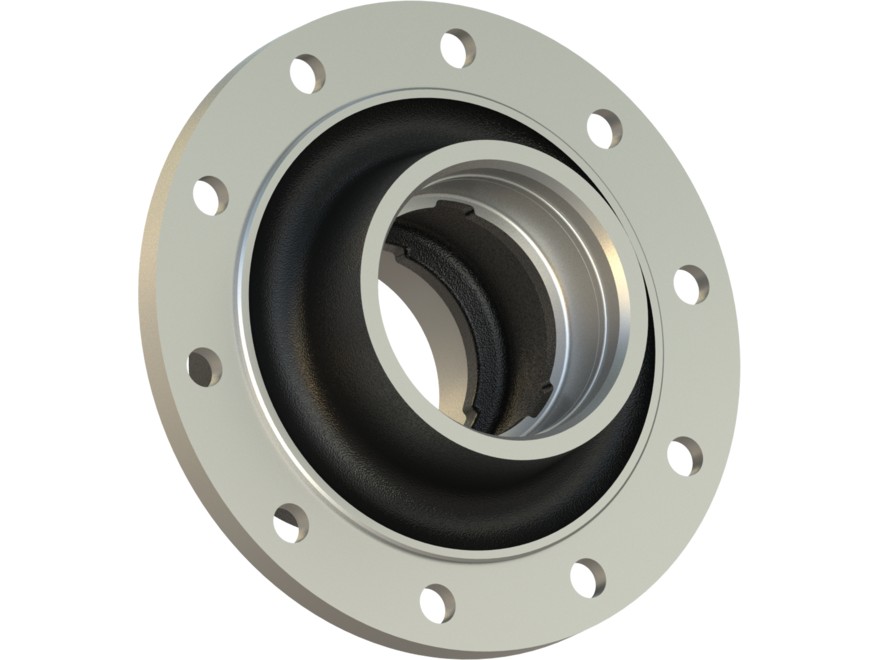

American Wheel Hubs
Wheel Hub
R 10.09
| Brand | HENDRICKSON |
|---|---|
| Rastgar No. | R 10.09 |
| OEM Number | 501533 |
| Cross Reference | Y501533 |
| Application | York/TEC 800 Series |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 147 | 157 | 23.65 | 212.7 | 387.35 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 387.35 | 335 | 10 | 157 | 147 | Other | 212.7 | RED OXIDE | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 501533 |
| Cross Ref. | HENDRICKSON : Y501533 |
| Customer Ref. | Universal Components U.K Limited: AP 983 |
