EU/Japanese Wheel Hubs

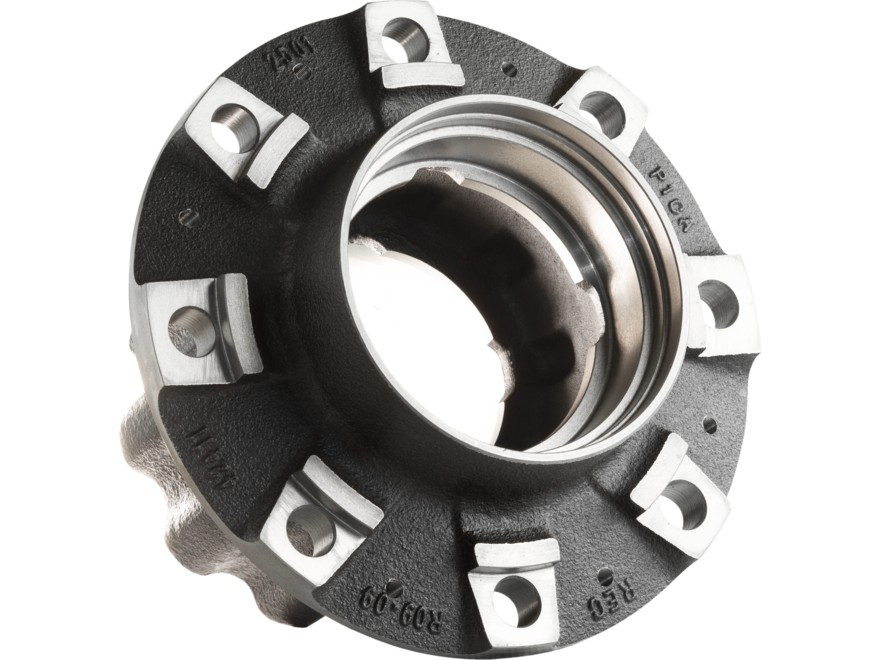

Wheel Hub
R 09.29
| Brand | HINO |
|---|---|
| Rastgar No. | R 09.29 |
| OEM Number | 42411-2501 |
| Application | FG / FL / FM / FM2P / RG/FM1J |
| Front / Rear | Rear |
| Material | HFCD390 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 150 | 160 | 24 | 243 | 329 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 329 | 285 | 8 | 160 | 150 | 243 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 42411-2501 |
