EU/Japanese Wheel Hubs

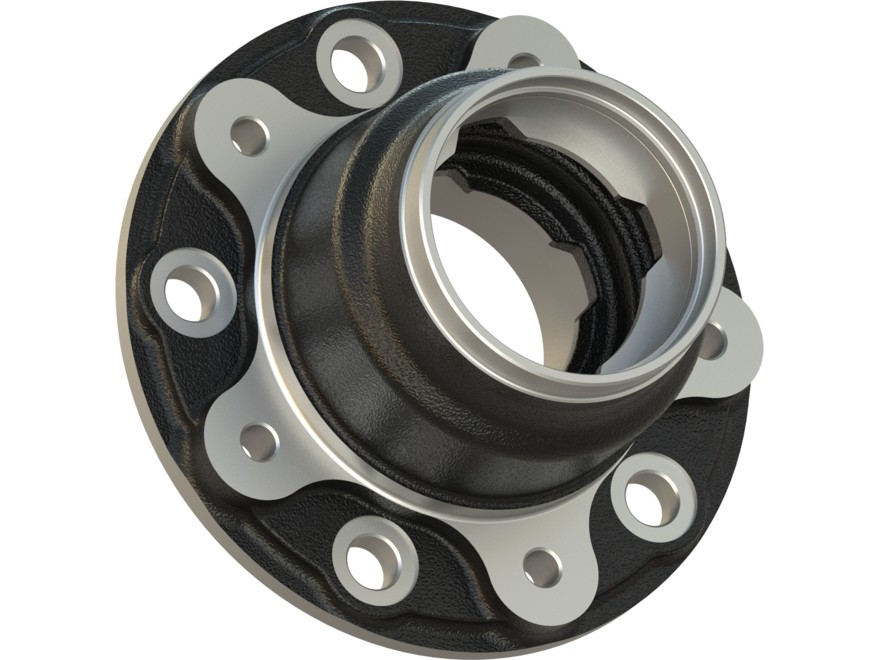

Wheel Hub
R 09.14
| Brand | HINO |
|---|---|
| Rastgar No. | R 09.14 |
| OEM Number | 42411-37030 |
| Application | DUTRO Jr. (300 Series) |
| Front / Rear | Rear |
| Material | FCD-400 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 100 | 110 | 20.5 | 142 | 252 |
Technical Specifications
| Outer Diameter | Length | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|---|
| 252 | 252 | 203.2 | 5 | 110 | 100 | 142 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 42411-37030 |
| Customer Ref. | Hinopak Motors Limited: 42411-37030 |
