EU/Japanese Wheel Hubs

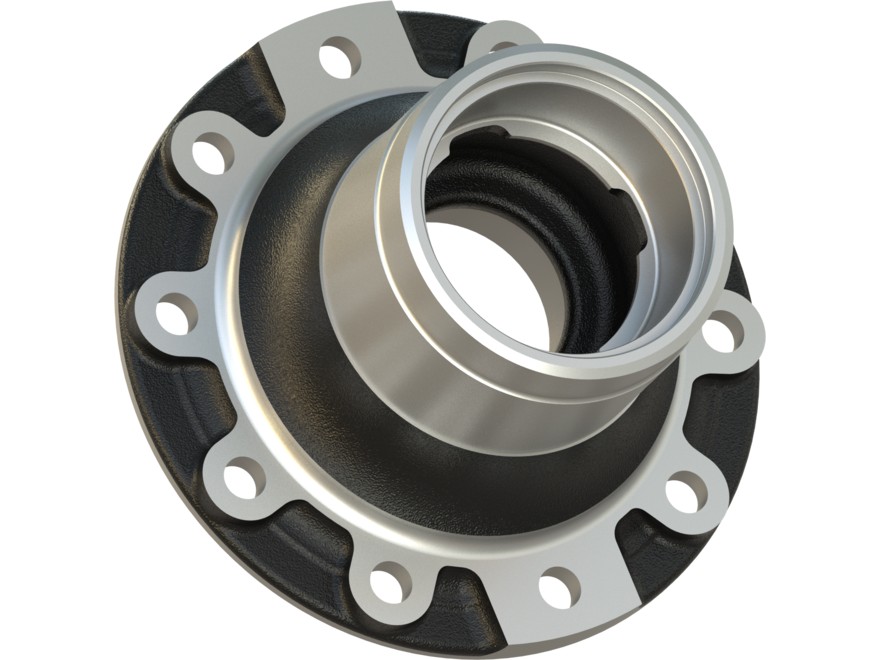

Wheel Hub
R 09.12
| Brand | HINO |
|---|---|
| Rastgar No. | R 09.12 |
| OEM Number | 43511-2341 |
| Application | SG |
| Front / Rear | Front |
| Material | FCD-400 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 110 | 140 | 22 | 197 | 334 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 334 | 285.75 | 10 | 140 | 110 | 197 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 43511-2341 |
| Customer Ref. | Hinopak Motors Limited: 43511-2341 |
