American Wheel Hubs

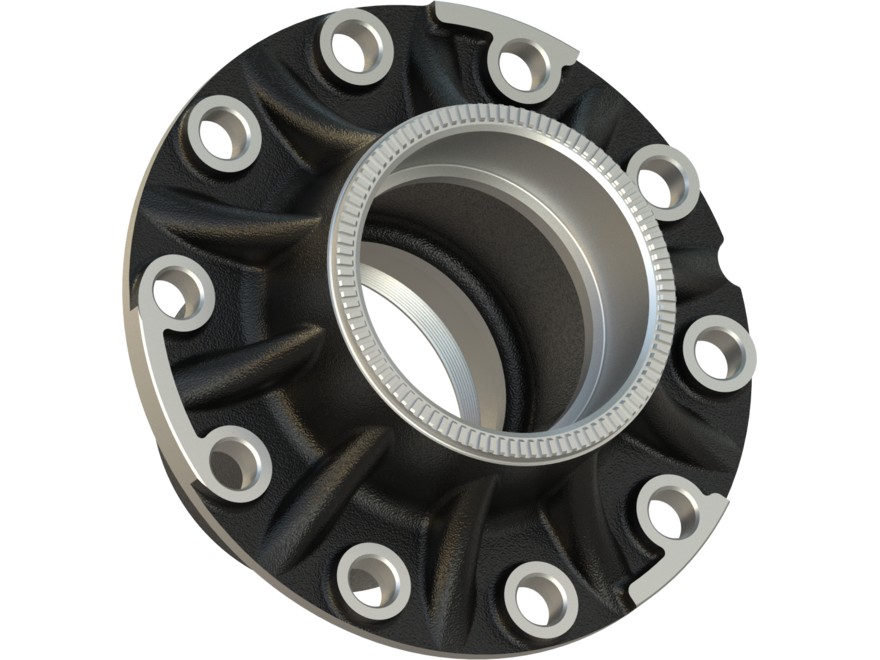

Wheel Hub
R 08.07
| Brand | GUNITE |
|---|---|
| Rastgar No. | R 08.07 |
| OEM Number | HT799J |
| Cross Reference | 10082231 , 10082256 , 150.T1201 , 23431-5T , HT 799J , HT 799K , SVC-01043 |
| Application | - |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 152.4 | 152.4 | 24.6 | 232.25 | 328.7 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 328.7 | 285.75 | 10 | 152.4 | 152.4 | P | 232.25 | BLACK AIR DRYING | Parallel Spindle |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | HT799J |
| Cross Ref. | WEBB : 23431-5T |
| Cross Ref. | AUTOMANN : 150.T1201 |
| Cross Ref. | CONMET : 10082231 |
| Cross Ref. | 10082256 |
| Cross Ref. | GUNITE : HT 799J |
| Cross Ref. | HT 799K |
| Cross Ref. | KIC : SVC-01043 |
| Product Ref. | R 08.07 100117|Wheel Hub Assembly |
