American Wheel Hubs

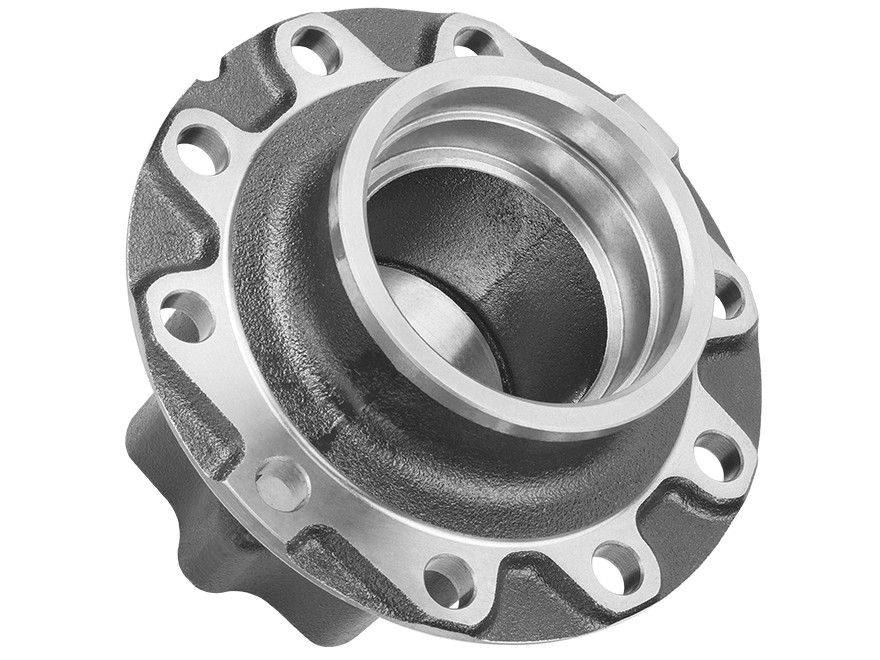

Wheel Hub
R 08.03
| Brand | GUNITE |
|---|---|
| Rastgar No. | R 08.03 |
| OEM Number | HR935K |
| Cross Reference | 10001280 , 10080409 , 10082219 , 26431-5T , 453-0273 , HR 931SK , HR 935K , HR 958K |
| Application | Outboard-Mount Truck Hub, Drive Axle, Use with 3600A Drum |
| Front / Rear | Front |
| Material | EN-GJS-450-10 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 139.9 | 152.4 | 24.6 | 253.5 | 330 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 330 | 285.75 | 10 | 152.4 | 139.9 | R | 253.5 | BLACK AIR DRYING | Drive Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | HR935K |
| Cross Ref. | CONMET : 10001280 |
| Cross Ref. | 10082219 |
| Cross Ref. | 10080409 |
| Cross Ref. | GUNITE : HR 935K |
| Cross Ref. | HR 931SK |
| Cross Ref. | HR 958K |
| Cross Ref. | STEMCO : 453-0273 |
| Cross Ref. | WEBB : 26431-5T |
| Customer Ref. | La Rue Enterprises: HR935K |
| Product Ref. | R 08.03 100017|Wheel Hub Assembly |
