American Wheel Hubs

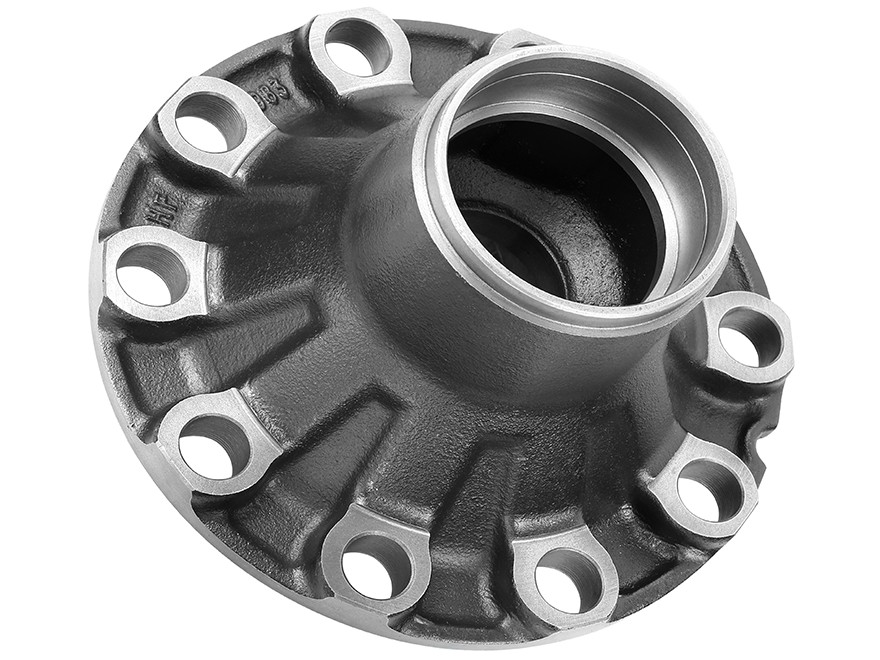

Wheel Hub
R 08.02
| Brand | GUNITE |
|---|---|
| Rastgar No. | R 08.02 |
| OEM Number | HF803K |
| Cross Reference | 00137L , 10082210 , HF 803K , HF 965 |
| Application | Trailer |
| Front / Rear | Front |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 93.15 | 122.15 | 24.6 | 204.5 | 330 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 330 | 285.75 | 10 | 122.15 | 93.15 | FF | 204.5 | BLACK AIR DRYING | Steer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | HF803K |
| Cross Ref. | GUNITE : HF 965 |
| Cross Ref. | HF 803K |
| Cross Ref. | CONMET : 10082210 |
| Cross Ref. | KIC : 00137L |
| Customer Ref. | La Rue Enterprises: HF 983 |
| Product Ref. | R 08.02 100017|Wheel Hub Assembly |
