EU/Japanese Wheel Hubs

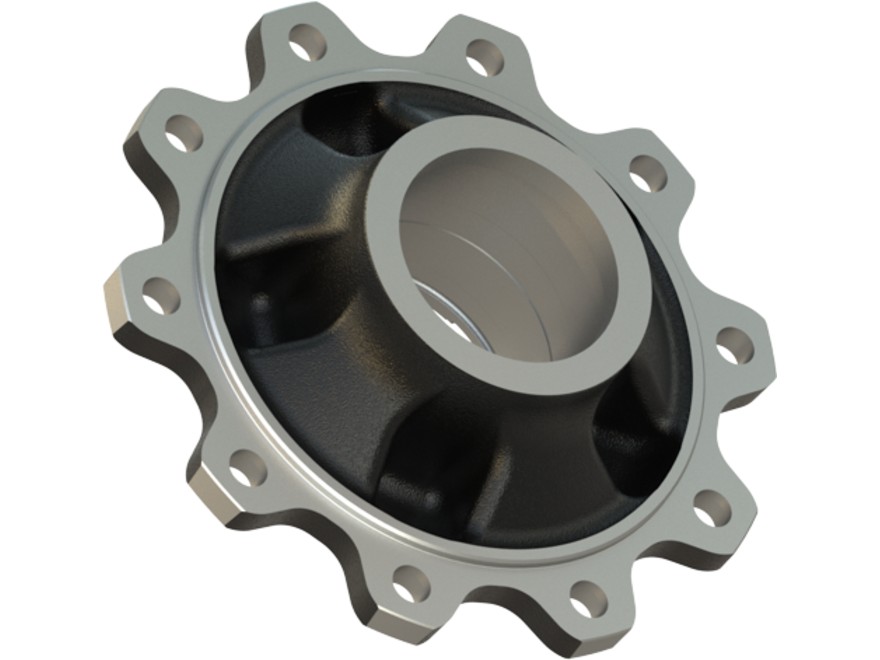

Wheel Hub
R 07.03
| Brand | GIGANT |
|---|---|
| Rastgar No. | R 07.03 |
| OEM Number | 9328-109 |
| Application | - |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | UNITISED BEARING 140 | UNITISED BEARING 140 | 22 | 159 | 380 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 380 | 335 | 10 | UNITISED BEARING 140 | UNITISED BEARING 140 | 159 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 9328-109 |
| Customer Ref. | Universal Components U.K Limited: (KLTH0209) KOGEL HUB |
