EU/Japanese Wheel Hubs

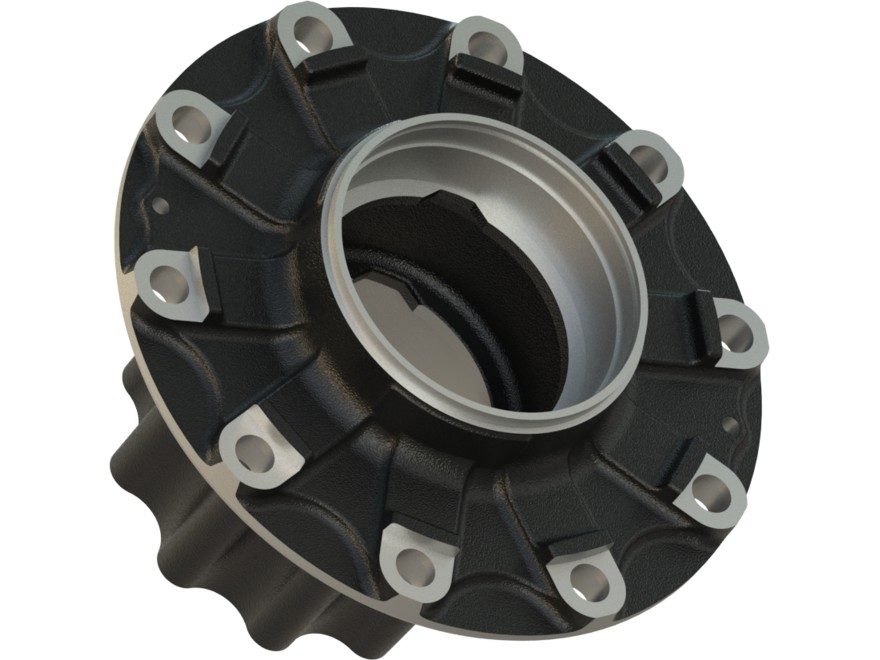

Wheel Hub
R 05.04
| Brand | DAEWOO |
|---|---|
| Rastgar No. | R 05.04 |
| OEM Number | 3453101200 |
| Application | V3T6F / M2T6F |
| Front / Rear | Rear |
| Material | FCD-480 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 160 | 170 | 23 | 237.5 | 375 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 375 | 335 | 10 | 170 | 160 | 237.5 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 3453101200 |
| Customer Ref. | Afzal Motors Company (Pvt) Limited: 3453101201 |
