EU/Japanese Wheel Hubs

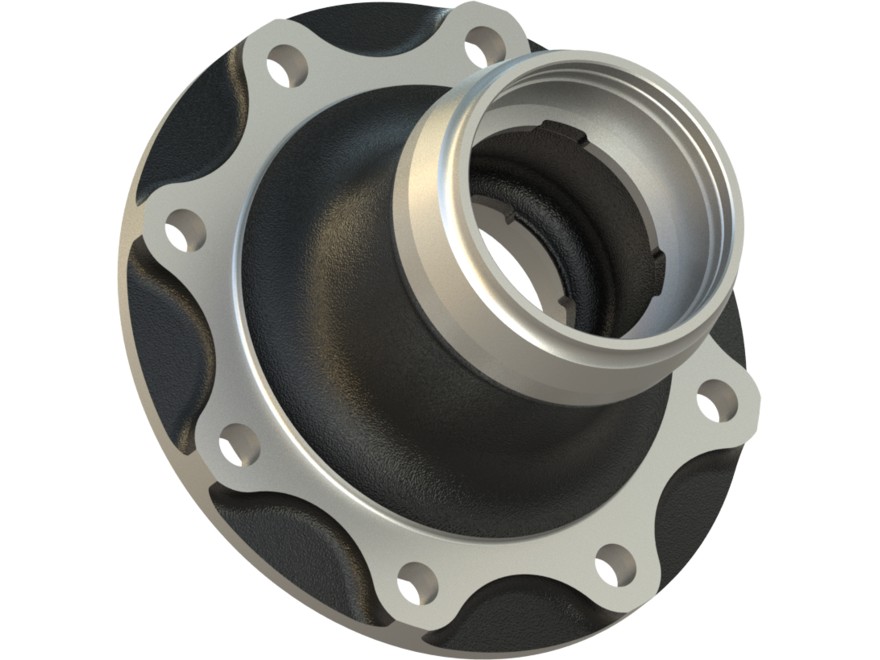

Wheel Hub
R 05.02
| Brand | DAEWOO |
|---|---|
| Rastgar No. | R 05.02 |
| OEM Number | 1423120471 |
| Application | BF120 / BH115 |
| Front / Rear | Front |
| Material | FCD-480 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 114.3 | 136.5 | 22 | 202 | 330 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 330 | 285 | 8 | 136.5 | 114.3 | 202 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1423120471 |
| Customer Ref. | Afzal Motors Company (Pvt) Limited: 1423120471 |
