EU/Japanese Wheel Hubs

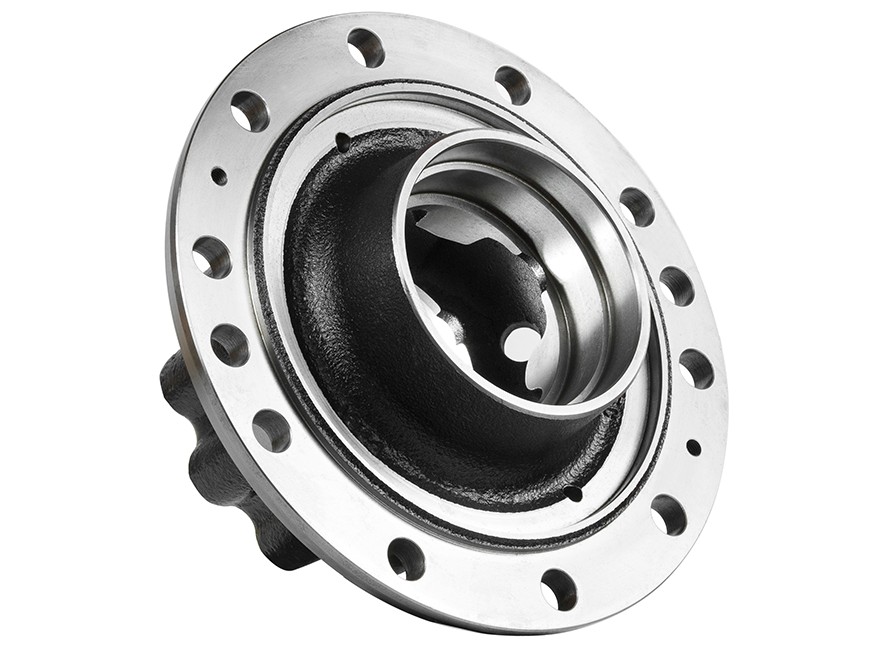

Wheel Hub
R 04.12
| Brand | DAF |
|---|---|
| Rastgar No. | R 04.12 |
| OEM Number | 1348433 |
| Cross Reference | 1283975 |
| Application | CF65/CF75/CF85 |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 145 | 150 | 24.7 | 212.97 | 379.95 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 379.95 | 335 | 10 | 150 | 145 | 212.97 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1348433 |
| Cross Ref. | 1283975 |
| Product Ref. | R 04.12 200007|Wheel Hub Assembly |
