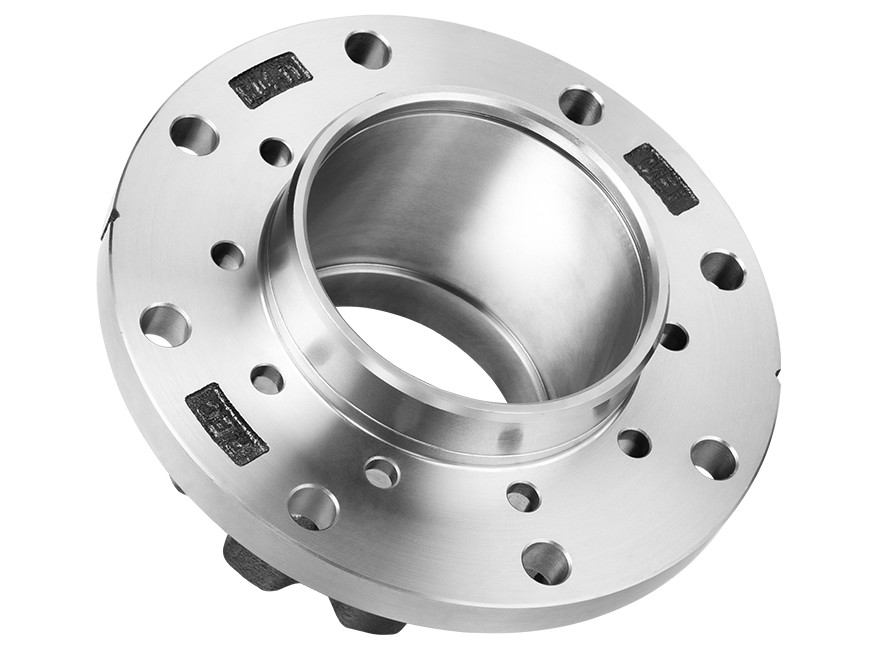

EU/Japanese Wheel Hubs
Wheel Hub
R 04.11
| Brand | DAF |
|---|---|
| Rastgar No. | R 04.11 |
| OEM Number | 1702952 |
| Cross Reference | 1400289 |
| Application | LF45/ LF55 |
| Front / Rear | Rear |
| Material | EN-GJS-600-3 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | UNITISED BEARING 160 | UNITISED BEARING 160 | 21 | 171.8 | 315.6 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 315.6 | 275 | 8 | UNITISED BEARING 160 | UNITISED BEARING 160 | 171.8 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1702952 |
| Cross Ref. | 1400289 |
| Customer Ref. | Samko: R 04.11 |
| Product Ref. | R 04.11 D00007|Wheel Hub |
| Product Ref. | R 04.11 D00007|Wheel Hub Assembly |
