EU/Japanese Wheel Hubs

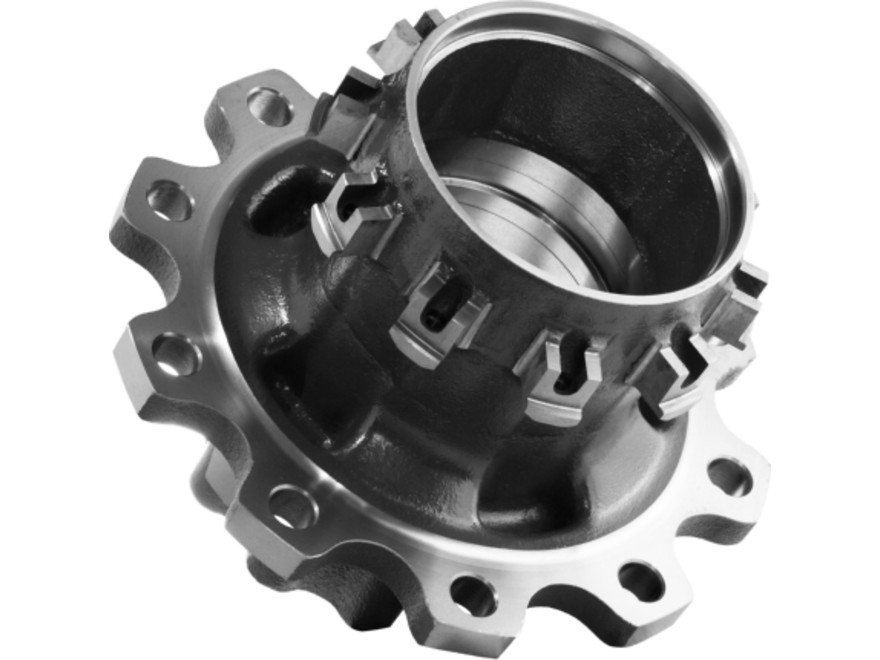

Wheel Hub
R 04.08
| Brand | DAF |
|---|---|
| Rastgar No. | R 04.08 |
| OEM Number | 1659576 |
| Application | LF 55/ CF/ XF95/ XF105 |
| Front / Rear | Rear |
| Material | EN-GJS-600-3 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 148 | 148 | 25 | 294.4 | 381 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 381 | 335 | 10 | 148 | 148 | 294.4 | Red Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1659576 |
| Product Ref. | R 04.08 900187|Wheel Hub |
| Product Ref. | R 04.08 900187|Wheel Hub Assembly |
