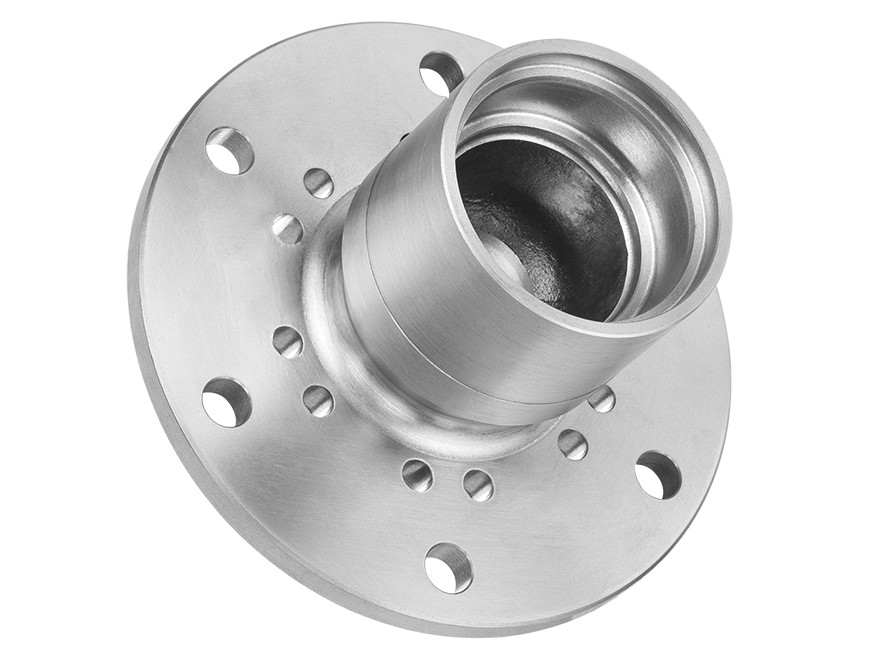

EU/Japanese Wheel Hubs
Wheel Hub
R 04.06
| Brand | DAF |
|---|---|
| Rastgar No. | R 04.06 |
| OEM Number | 1407382 |
| Cross Reference | 1404470 , 1407383 |
| Application | LF45 |
| Front / Rear | Front |
| Material | EN-GJS-500-7 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 62 | 95 | 19 | 144.5 | 247.5 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 247.5 | 205 | 6 | 95 | 62 | 144.5 | Full Machined |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1407382 |
| Cross Ref. | 1404470 |
| Cross Ref. | 1407383 |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: AH2416F |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: BH2416 |
| Customer Ref. | Complete Hub Technologies: R 04.06 |
| Product Ref. | R 04.06 200007|Wheel Hub |
| Product Ref. | R 04.06 200007|Wheel Hub Assembly |
