EU/Japanese Wheel Hubs

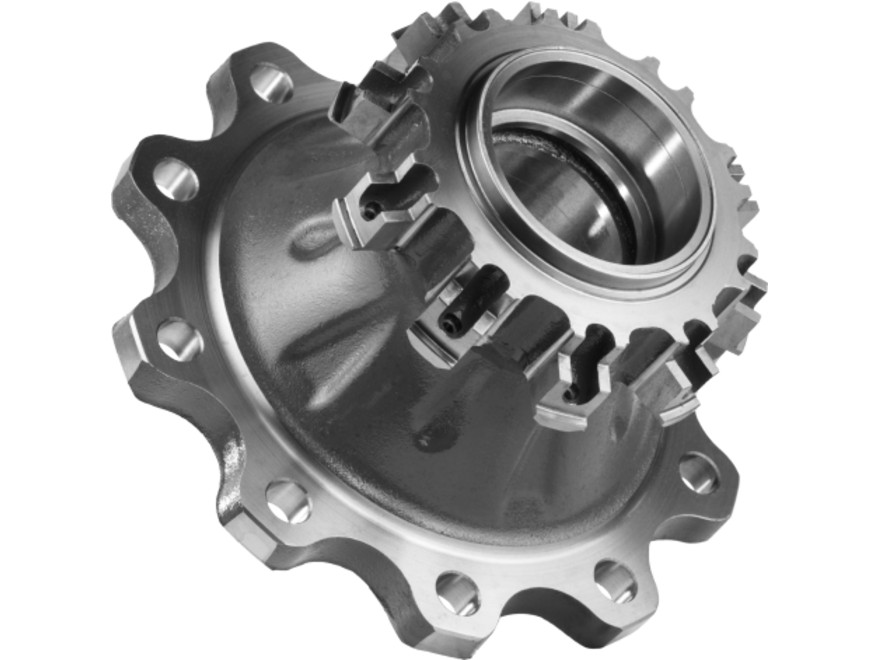

Wheel Hub
R 04.05
| Brand | DAF |
|---|---|
| Rastgar No. | R 04.05 |
| OEM Number | 1697346 |
| Cross Reference | 1388905 , 1391615 |
| Application | LF 55/ CF/ XF95/ XF105 |
| Front / Rear | Front |
| Material | EN-GJS-600-3 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 119.7 | 124.7 | 25 | 207 | 387 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 387 | 335 | 10 | 124.7 | 119.7 | 207 | Red Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1697346 |
| Cross Ref. | 1388905 |
| Cross Ref. | 1391615 |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: BH2400 |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: AH2400F |
| Customer Ref. | Complete Hub Technologies: R 04.05 |
| Customer Ref. | DESERT FACE INTERNATIONAL FZCO: UDC-6987 |
| Customer Ref. | Universal Components U.K Limited: DFHB0003 (Assembly) |
| Customer Ref. | Universal Components U.K Limited: DFHB0018 (Bare Hub) |
| Product Ref. | R 04.05 900187|Wheel Hub |
| Product Ref. | R 04.05 900187|Wheel Hub Assembly |
