EU/Japanese Wheel Hubs

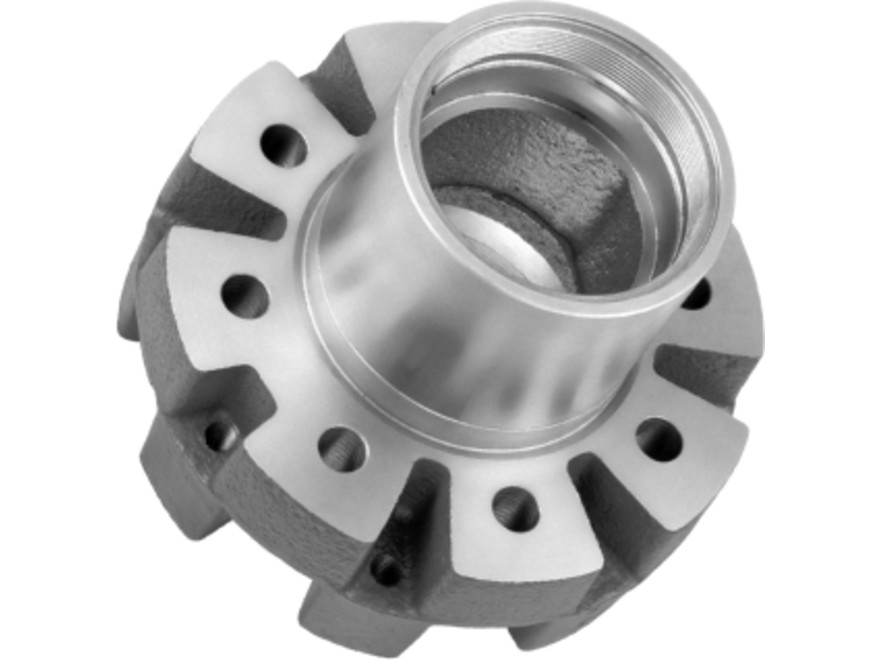

Wheel Hub
R 03.03
| Brand | DEXTER |
|---|---|
| Rastgar No. | R 03.03 |
| OEM Number | K08-288 |
| Cross Reference | K08-288 |
| Application | 9K & 10K GD Idler Ax |
| Front / Rear | Rear |
| Material | EN-GJL-250 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 96.8 | 109.92 | 17 | 176 | 221.5 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 221.5 | 165 | 8 | 109.92 | 96.8 | 176 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | K08-288 |
| Cross Ref. | K08-288 |
| Customer Ref. | La Rue Enterprises: 82145 |
