EU/Japanese Wheel Hubs

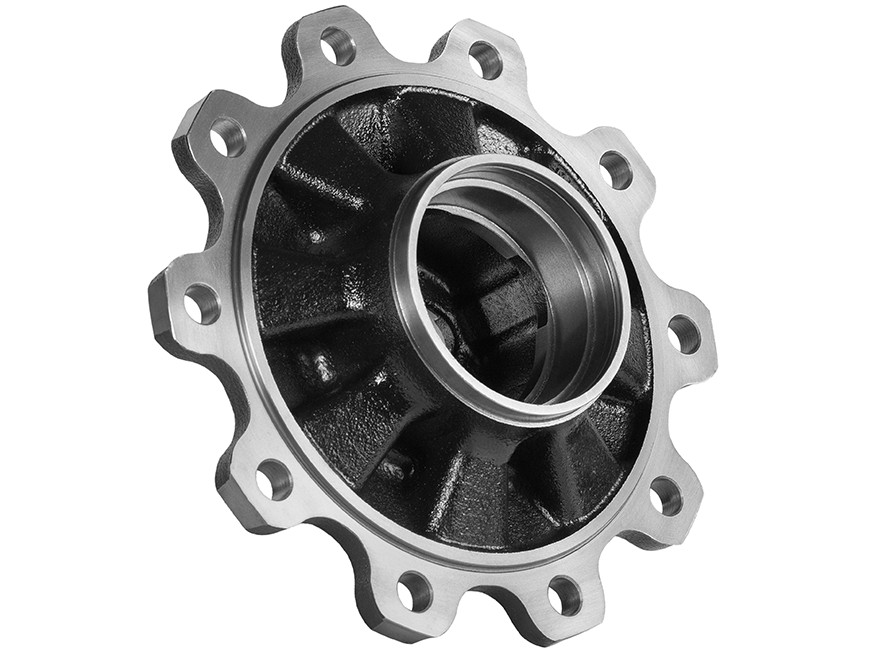

Wheel Hub
R 01.22
| Brand | BPW |
|---|---|
| Rastgar No. | R 01.22 |
| OEM Number | 03.272.30.97.0 |
| Cross Reference | 03.272.30.95.0 , 09.801.06.05.0 |
| Application | SH / SKHS / HS / ECO MAXX SERIES |
| Front / Rear | Rear |
| Material | EN-GJS-400-15 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 110 | 130 | 22 | 193 | 380 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 380 | 335 | 10 | 130 | 110 | 193 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 03.272.30.97.0 |
| Cross Ref. | 03.272.30.95.0 |
| Cross Ref. | 09.801.06.05.0 |
| Product Ref. | R 01.22 200007|Wheel Hub |
| Product Ref. | R 01.22 200007|Wheel Hub Assembly |
