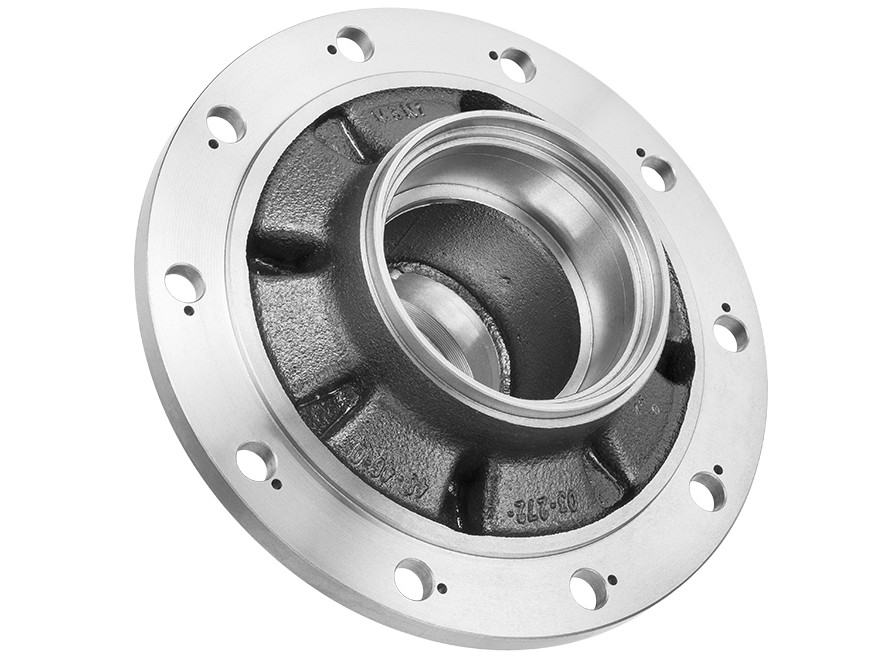

EU/Japanese Wheel Hubs
Wheel Hub
R 01.07
| Brand | BPW |
|---|---|
| Rastgar No. | R 01.07 |
| OEM Number | 03.272.48.46.0 |
| Cross Reference | 03.272.48.39.0 , 03.272.48.40.0 , 03.272.48.45.0 , 03.272.48.62.0 |
| Application | HS SERIES |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 120 | 150 | 22 | 203 | 378 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 378 | 335 | 10 | 150 | 120 | 203 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 03.272.48.46.0 |
| Cross Ref. | 03.272.48.39.0 |
| Cross Ref. | 03.272.48.45.0 |
| Cross Ref. | 03.272.48.62.0 |
| Cross Ref. | 03.272.48.40.0 |
| Customer Ref. | BERGKRAFT Automotive GmbH.: BK6102312 |
| Customer Ref. | Universal Components U.K Limited: A9637 |
