EU/Japanese Wheel Hubs

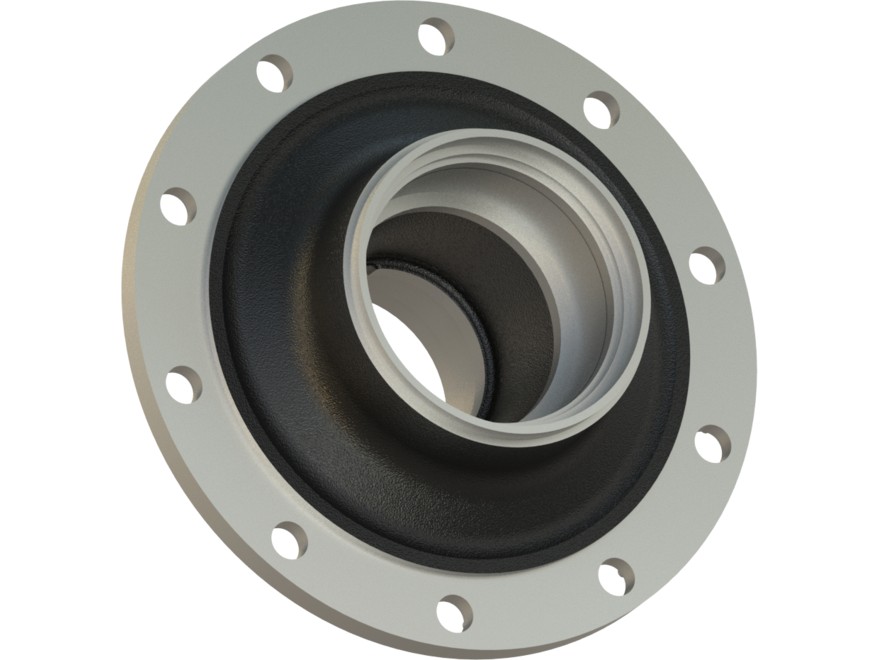

Wheel Hub
R 01.04
| Brand | BPW |
|---|---|
| Rastgar No. | R 01.04 |
| OEM Number | 03.272.48.10.0 |
| Cross Reference | 03.272.48.07.0 , 03.272.48.12.0 , 03.272.48.32.0 |
| Application | BPW EH |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 120 | 150 | 22 | 220 | 375 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 375 | 335 | 10 | 150 | 120 | 220 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 03.272.48.10.0 |
| Cross Ref. | 03.272.48.12.0 |
| Cross Ref. | 03.272.48.32.0 |
| Cross Ref. | 03.272.48.07.0 |
| Customer Ref. | Samko: 500671 |
