Steering Knuckles, Brackets & Fly Wheels

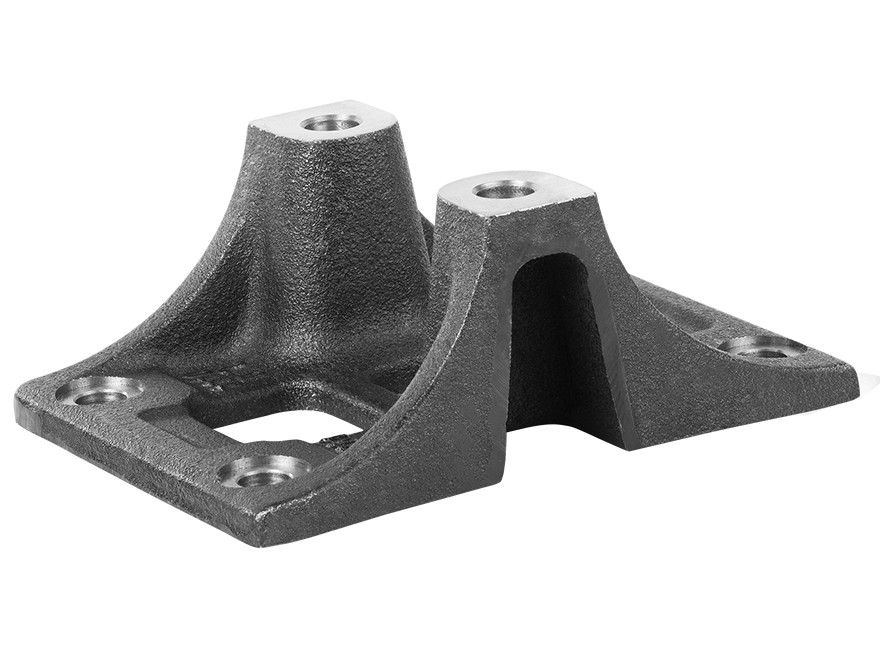

Bracket Torque
K 09.04
| Brand | HINO |
|---|---|
| Rastgar No. | K 09.04 |
| OEM Number | 49361-1110B |
| Application | FL / FM / SG |
| Front / Rear | Other |
| Material | FCD-500 |
Dimension Reference
| ABS | D [mm] |
|---|---|
| ✗ | 93.5 |
Technical Specifications
| Width | Length | PCD | No. of Holes | Hole Dia | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 170 | 230 | 0 | 0 | 0 | 93.5 | B-S-A |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 49361-1110B |
| Customer Ref. | Hinopak Motors Limited: 49361-1110B |
