Steering Knuckles, Brackets & Fly Wheels

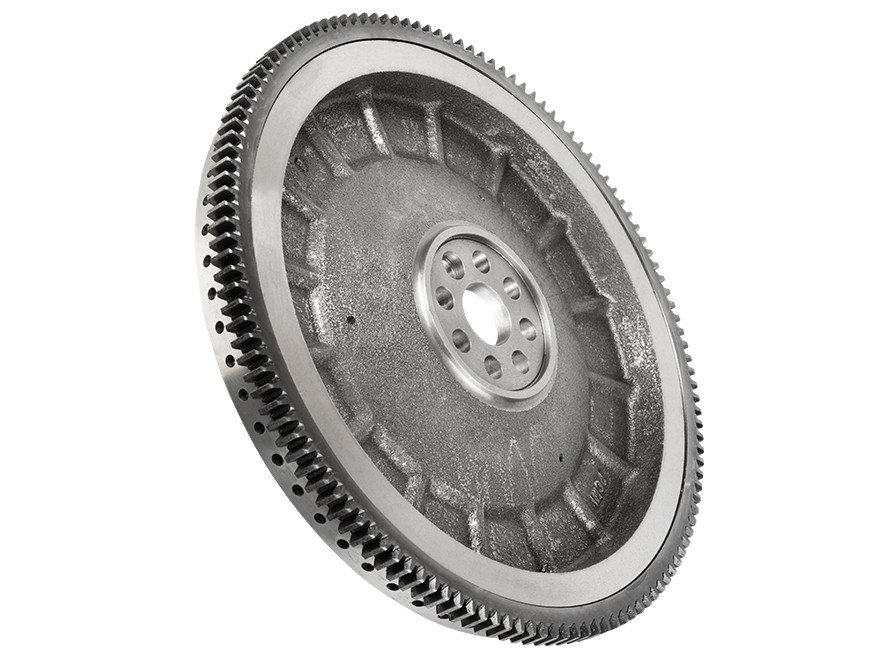

FLY WHEEL
F 09.02
| Brand | HINO |
|---|---|
| Rastgar No. | F 09.02 |
| OEM Number | 13450-78260 |
| Cross Reference | 13451-78070 |
| Application | YP71 |
| Front / Rear | Other |
| Material | FC-250 |
Dimension Reference
| ABS | D [mm] | E [mm] |
|---|---|---|
| ✗ | 45 | 370 |
Technical Specifications
| Outer Diameter | Total Height | Width | Length | No. of Holes | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 370 | 45 | 370 | 370 | (8 Holes 70 PCD) (10 Holes 345 PCD) 3 Taper Holes, 56 Side Holes | 45 | N-P |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 13450-78260 |
| Cross Ref. | 13451-78070 |
